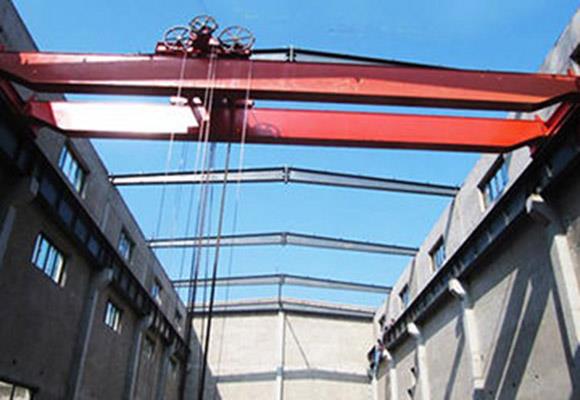

Manually Ua Ob Chav Girder Nyiaj Siv Tawm Crane

Kev piav qhia

Kev tuav ob feem ntawm lub vauj crane yog ib hom me me ntawm crane, tsim rau lub Hoobkas khoom siv nruab, txij nkawm thiab chaw ua haujlwm tsis muaj fais fab mov.

Kev khiav lag luam ob chav girder crane yog muaj tus choj, lub laub tsav ntaus thiab phau ntawv qhia monorail tsheb thiab lwm qhov chaw loj.

Nws nyhav nyhav li 1 ton mus txog 40 tuj, ua haujlwm A1-A3 (teeb).

Nta

Kev paub nrog kev cia siab
Flexibility nrog daim ntawv thov
Yooj yim yooj yim
Yooj Yim Kho

Specifications

Peev Xwm	T	32 / 5,50 / 10
Tau Txais	m	10.5	13.5	16.5	19.5		22.5	25.5	28.5	31.5
Lifting qhov siab	m	16/18
Lifting ceev	m / min	15.6
Trolley kev tsav tsheb khiav ceev	m / min	3.36-33.6.2.9-29
Crane hauv kev khiav ceev	m / min	92.7			93.7			86.5
Tag nrho qhov hnyav	kg	15406	17290	20020	21724	24213		28579	31970	35389
Max. Log load	KN	104	111	120	125	132		144	152	162
Rail tau pom zoo	Qauv	43kg / m
Tag nrho lub cev muaj zog	kw	27.8			31.8
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	10.5	13.5	16.5	19.5	22.5		25.5	28.5	31.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	Xyoo 1750						1840
Tsheb sab saum toj rau nqe lauj	H4	55						5
Crane paus nrug	W	5140			5334			5940
Crane dav	B	3450						4400
Trolley kev tsheb nqaj hlau	K	1400
Ntaus tau ua txhaum	S1	800
Nqe lem txoj cai txwv	S2	1250
