Plaub Txuas Portal Crane
Plaub Hloov Portal Crane Nqe Plaub Hlis Portal Crane Tau Txais Plaub-txuas txuas rau kev thauj khoom thiab kev thauj khoom ntawm qhov chaw nres nkoj thiab cov khoom siv hauv kev lag luam los ntawm kev lag luam dockyard thiab metallurgy, Cov txheej txheem tseem ceeb muaj li ntawm steel ncej, lifting mechanism, luffing mechanism, slewing mechanism, crane ...

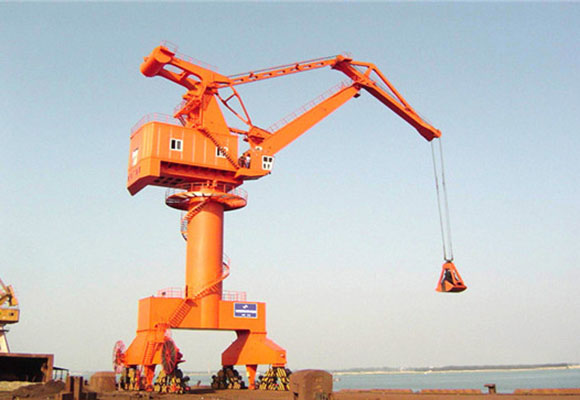

Plaub Txuas Portal Crane
Kev piav qhia
Plaub-txuas hom portal crane tau ntau heev rau kev thauj khoom thiab tawm hauv qhov chaw nres nkoj thiab cov khoom siv hauv kev lag luam ntawm dockyard thiab metallurgy kev lag luam, Cov txheej txheem tseem ceeb yog tsim los ntawm cov qauv steel, lifting mechanism, luffing mechanism, slewing mechanism, crane mus ncig xyaw mechanism spreader , thawv thawv, thiab sib txuas thiab electrmangnetdisk), cov khoom siv hluav taws xob thiab lwm yam khoom tsim nyog rau kev nyab xeeb. Cov txheej txheem hlau muaj xws li jib thiab A-xwm, lub plhaub pob zeb thiab kab ntug hauv av.
Cov qauv lus qhia: GB17495-1998 Harbour portal crane technical specifications, GB6067-85 kev nyab xeeb kev ruaj ntseg, GB3811-2008 crane tsim cov qauv, ISO cov qauv, FEM cov qauv thiab cov qauv JIS.
No cov crane portal crane yog ib lub xov tooj txawb, puv nkaus-tig, thiab plaub-bar chav crane. Nws cov caj npab thiab kev tawm tsam yog phom sij. Muaj 2 hom ntawm cov kablus portal: lub tog raj kheej thiab plaub txoj cai. Qhov chaw foob pob no yog rau kev nqa cov ntim nrog cov hooks los yog grabs.
Zoo: ntev caj npab, haum rau loj nkoj, zoo nkauj sab nrauv, ruaj ntseg thiab txhim khu kev qha, ruaj siab ua tau zoo, yooj yim rau tu. Nws yog qhov kev xaiv zoo tshaj plaws rau ntau hom kev thauj khoom xa tuaj.
Specification
Hom | Lifting | Qhov siab | Qhov siab | Ntshav nplhaib xaj | Lifting Speed | Max Log | Ntsia | Match | |||||
Max (m) | Min (m) | saum toj no rail (m) | hauv qab rail (m) | (m) | Lifting (m / min) | Amplitute (m / min) | Kev sib hloov (m / min) | Crane (m / min) | |||||
MQ525 | 5 | 25 | 8 | 12 | 9 | 10.5 × | 40 | 24 | 1.5 | 25 | 180 | 280 | 19000 |
10.5 | |||||||||||||
MQ535 | 5 | 33 | 10 | 15 | 9 | 10.5 × | 50 | 40 | 1.5 | 25 | 210 | 300 | 30000 |
10.5 | |||||||||||||
MQ1025 | 10 | 25 | 8 | 15 | 9 | 10.5 × | 50 | 50 | 1.5 | 25 | 220 | 330 | 19000 |
10.5 | |||||||||||||
MQ1033 | 10 | 33 | 10 | 20 | 12 | 10.5 × | 50 | 40 | 1.4 | 25 | 185 | 345 | 30000 |
10.5 | |||||||||||||
MQ1625 | 16 | 25 | 9 | 20 | 12 | 10.5 × | 50 | 40 | 1.5 | 25 | 240 | 325 | 19000 |
10.5 | |||||||||||||
MQ1633 | 16 | 33 | 10 | 28 | 15 | 10.5 × | 60 | 40 | 1.5 | 25 | 250 | 345 | 30000 |
10.5 | |||||||||||||
MQ2533 | 25 | 33 | 10 | 28 | 15 | 10.5 × | 60 | 50 | 1.5 | 25 | 260 | 435 | 30000 |
10.5 | |||||||||||||
MQ4033 | 40 | 33 | 10 | 28 | 16 | 10.5 × | 50 | 50 | 1.41 | 25 | 260 | 560 | 30000 |
10.5 | |||||||||||||
S4070 | 40 | 65 | 24 | 45 | 13 | 10.5 × | 15 | 17 | 0.26 | 26 | 260 | 400 | 100000 |
K10 | 70 | 29 | 45 | 13 | 18.5 | ||||||||
S5035 | 50 | 35 | 12 | 40 | 0 | 10.5 × | 7.5 | 12.8 | 0.4 | 25 | 250 | 250 | 30000 |
K10 | 38 | 14 | 40 | 0 | 12 | ||||||||
S8035 | 80 | 35 | 12 | 40 | 12 × | 6 | 12.8 | 0.4 | 25 | 250 | 320 | 30000 | |
K10 | 10.5 | ||||||||||||
