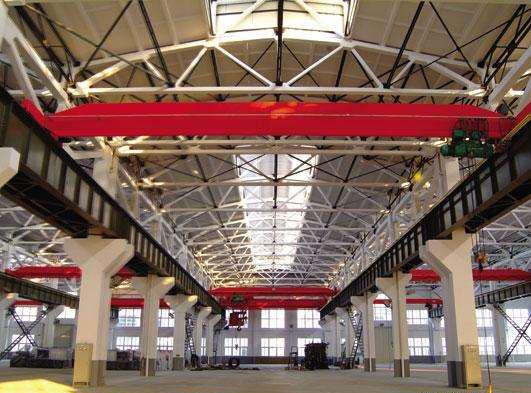

Lowhead Chaav Ib Tug Nuj Nqis Nyiaj Txiag Crane Rau Kev Txuag Siv Nyiaj

- Oct 05, 2017 -

Basic Info

Lub Npe: Lowhead Chaav Ib Tug Nuj Nqis Nyiaj Txiag Crane rau Kev Siv Nyiaj Saving

Hom: Ib Leeg Crane

Tau Txais: mus txog 22.5m

Pawg Ua Hauj Lwm: A3-A5

Kev Thaiv Tswj: Pendent / Wireless

Kev Tiv Thaiv Kev Nyab Xeeb: Tau

Cov Kev Txis Mus Los: Tau

Tom qab Kev Pab Muag Khoom: Tau

Lub Sij Hawm Tshem Tawm: 12 hli

Kev Cai Tsim: Muaj

Tswv Yim Cov Qauv: Cov Rigid Box Hom

Xim xim: raws li xav tau

Thauj Pob: Ntoo Lub Thawv

Peev xwm: 3-20T

Tau Txais: 5-25M

Keeb kwm: Henan, Suav teb

Cov Lus Qhia Txog

Ntu 1: Cov lus piav qhia

LDP Hom Qis Hauv Tsev Qiv Hauv Ib Qho Hauv Ib Tug Ntaus Pob Nyiaj Yog ib hom kev lag luam nqa cov khoom siv rau cov khoom siv tsis tshua muaj siab. Lub tshuab nqa fais fab kev lag luam yog nruab ntawm ib sab ntawm lub ntsiab nkag, yog li nws muaj peev xwm nce chaw ntawm sib ntsib thiab txo nqi ntawm kev tsim kho ntawm cov nroj tsuag steel. Nrog rau qhov zoo ntawm txoj kev mus ncig, kev nruj, kev nruj rigidity, kev ruaj ntseg thiab kev cia siab thiab kev ua tau zoo, nws yog dav siv nyob rau hauv qhov teeb meem uas clearance qhov siab ntawm rhiav yog heev tsawg los yog tus neeg xav tau siab tshaj plaws nws qhov siab lifting.

Part2: Cov Kev Ntsuam Xyuas Kom Ntxuas

Mechanical Nta
- LDP hom crane yog tsim los ntawm lub plhaub zeeg, cov nqaj hlau hla, thaiv, cov khoom hluav taws xob thiab kev txhawb nqa kev lag luam (fais Hoist, kev sib daj sib deev sib txuas)
-Qhov lub hauv paus loj yuav nyob rau hauv daim ntawv ntawm lub thawv uas nruj heev
-Shot-blasting Sa2.5 kom tiav cov khoom tiav tom qab welding, kev nyuab siab tso
-Epoxy zinc nplua nuj siab zoo, 2x2 nrog 140μ M
-10.9 chav kawm siab nro phab ntsa nruab nrab ntawm cov zais thiab cov ceg
-Txhua tsav tsheb tsav lossis tsoos LD tsav tsheb
-Cov menyuam yaus tsiv, muaj zog braking, lub neej ua haujlwm ntev

Hluav taws xob Ntaus
-Kev fais fab tuag
-Txhua tus taw tes thiab cov txav crane ywj siab thiab khiav tau ib txhij.
-Lub tswj cov iav yog IP54
-Cov khoom yog qhov chaw nyob hauv tus txij nkawm kev phooj ywg, thiab tag nrho qhov teeb meem muab kev tiv thaiv zoo
-Festoon cables raug tshem tawm ntawm cable saddles, tsau rau cov kab sib txuas ntawm lub tsheb, khiav hauv cov khoom C-galvanized.

Tiv thaiv Txawb
- Txwv tsis pub lim dej, Txwv kev sib tsoo, Kev tiv thaiv thaiv kev sib tsoo, Kev sib tw, Daim npav thaiv kev ruaj ntseg, Kev tiv thaiv npog, Npav Tiv thaiv kom tsis txhob muaj teeb meem, Kev sib tsoo ntawm kev sib tsoo,

Ntu 3: Cov Ntawv Qhia Txog Cov Ntaub Ntawv thiab Kev Tshaj Tawm (Siv 3T Crane ua piv txwv)

peev	ncua (m)	(G) tag nrho qhov hnyav	Rmax (kN)	Rmin (kN)	H1 (hli)	H2 (hli)	W (hli)	B (hli)	E (hli)	L1 (hli)	L2 (hli)
3	7.5	2.705	20.1	5.39	1065	-130	2500	3000	965	1413	1496
	8	2.767	20.48	5.51
	8.5	2.845	20.87	5.68
	9	2.907	21.2	5.81
	9.5	2.969	21.51	5.94
	10	3.03	21.8	6.08
	10.5	3.108	22.12	6.25
	11	3.172	22.4	6.4
	11.5	3.519	23.38	7.24	1130	-65			1000 xyoo
	12	3.591	23.65	7.4
	12.5	3.686	23.98	7.63
	13	3.759	24.25	7.8
	13.5	3.835	24.51	7.98
	14	3.907	24.76	8.15
	14.5	4.278	25.51	8.81	1180	-15	3000	3500	1280
	15	4.357	25.76	8.99
	15.5	4.437	26.02	9.19
	16	4.513	26.27	9.37	1230	35	3500	4000	1545
	16.5	4.612	26.56	9.61
	17	4.689	26.8	9.79
	17.5	5.066	28.05	10.98
	18	5.145	28.29	11.17
	18.5	5.255	28.61	11.44
	19	5.337	28.85	11.64
	19.5	5.422	29.02	11.84
	20	6.312	31.37	14.05	1300	105			1570
	20.5	6.441	31.72	14.37
	21	6.543	32.01	14.62
	21.5	6.642	32.09	14.87
	22	6.747	32.58	15.13
	22.5	6.877	32.93	15.45

LDP Puag Tsawg Headroom Nyiaj Siv Tawm Crane
Peev (t)	1t	2t	3t	5t	10t
Kev ncua (m)	7.5m ~ 22.5m, lossis lwm yam tshwj xeeb
Lifting Qhov siab (m)	6m, 9m, 12m lossis lwm qhov ntxiv
Lifting Ceev (m / min)	8rau 8 / 0.8	8rau 8 / 0.8	8rau 8 / 0.8	8rau 8 / 0.8	7or7 / 0.7
Trolley ceev (m / min)	20	20	20	20	20
Choj Ceev (m / min)	30	30	30	30	30
Ua haujlwm ua haujlwm	A4	A4	A4	A4	A4
Lub hwj chim	380V, 50Hz los yog lwm yam
