Basic Info
Qauv TSIS MUAJ: LH

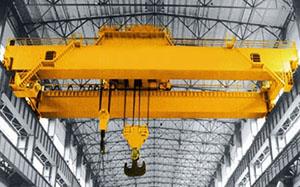

Lub Npe: Ob chav ntiv tes hluav taws xob trolley overhead crane
Hom: Crane
Feature: Tshiab
Tus Txheej Txheem: Choj Crane
Daim Ntawv Thov: Rhiav Crane
Keeb kwm: Henan, Suav teb
Lub ntsiab lus Girder: Ob chav Girder
Khiav Hom: Hloov
Hom Hauj Lwm: Middle-Level
Kev Nruab Nrab: Tshwj Xeeb Crane
Specification: ISO / CE / GB
Cov Lus Qhia Txog
Ob lub vev xaib hluav taws xob ua haujlwm sab saum toj crane yog cov muaj cov choj ua lag luam, tsheb nqaj hlau thauj khoom, tsheb nqaj hlau thiab khoom siv hluav taws xob, thiab tuaj yeem ua haujlwm rau ob peb ua haujlwm qib, xws li: A5, A6 thiab A7 raws li cov haujlwm ua haujlwm thiab lub sijhawm. yog siv dav hauv cov nroj tsuag, warehouse, cov khoom muag khoom nqa mus rau cov khoom siv ua haujlwm. Cov haujlwm ua haujlwm: -20 - 40 teev, ua haujlwm: A3- A5, Txoj kev khiav lag luam ntawm Electric WIre nrog kev tuav haujlwm, lossis kev tswj chaw taws teeb, peb tau muab yog tsim los ua kom tau raws li qhov yuav tsum tau ua thiab yuav tsum tau teev nyob rau hauv koj cov kev qhia, nrog rau kev khiav hauj lwm rau cov neeg mob.
Pls ua siab zoo qhia kuv cov lus qhia ntxiv txog koj cov nyiaj siv ua haujlwm saum taub hau hauv koj qhov kev nug:
1- Cov peev xwm nqa?
2- Nws puas yog ib qho laub ntawm lub vev xaib, los yog ob npaug rau hauv lub vauj yas?
3- Qhov siab puas?
4- lub ncua ntawm lub ntsiab nkag?
5- Ntev npaum licas?
6- fais fab tuag: 380V / 50Hz / 3 theem puas zoo lossis tsis?
7- Mus ncig teb chaws nrug? Koj puas xav mus yuav cov kev tawm ntawm peb mus los?
Lifting peev xwm | t | 50/10 | ||||||||||||
Spam | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |||||
Max qhov siab qhov siab | Nqa lub ntsiab | 12 | ||||||||||||
Aux lifting | 16 | |||||||||||||
Ua hauj lwm | A5 | |||||||||||||
ceev | Nqa lub ntsiab | m / min | 5.9 | |||||||||||
Aux lifting | 13.8 | |||||||||||||
trolley | 38.5 | |||||||||||||
crane | 74.6 | 85.9 | ||||||||||||
cav | Nqa lub ntsiab | Hom / Kw | YZR280M-5/55 | |||||||||||
Aux lifting | YZR200L-6/26 | |||||||||||||
TROLLEY | YZR160M2-6 / 8.5 | |||||||||||||
crane | YZR160L-6/13 | YZR180L-8/13 | YZR180L-8/13 | |||||||||||
Tag nrho qhov hnyav ntawm crane | kg | 35317 | 37788 | 42042 | 46140 | 50082 | 55590 | 59592 | 64880 | |||||
Max log load | KN | 333 | 354 | 373 | 385 | 404 | 421 | 434 | 450 | |||||
Lus cim: tsos me me zoo li A5 |
