Tib Girder Choj Crane

Peb tau muaj kev txawj ntse hauv kev tsim khoom thiab xa tawm ib qho khoom siv ntawm cov leeg tib leeg Girder Kub / Choj Cranes. Tus choj cranes yog tsim los ntawm kev siv cov khoom zoo tshaj plaws thiab kev siv technology hauv kev ua raws li cov qauv tsim muaj nyob rau hauv ....

Xa kev nug Tsham tam sim no

Txhawb tshuaj

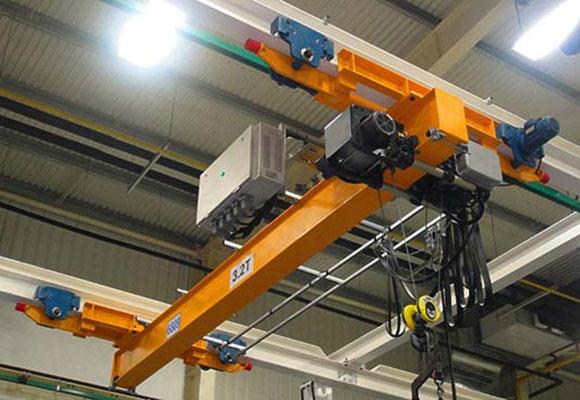

Tib Girder Choj crane

Kev piav qhia

Peb tau muaj kev txawj ntse hauv kev tsim khoom thiab xa tawm ib qho kev tiv thaiv zoo txog ntawm Girder Choj Crane. Tus choj cranes yog tsim los ntawm kev siv cov ntaub ntawv zoo tshaj plaws thiab kev siv technology hauv kev ua raws li cov qauv tsim muaj. Kom ua kom muaj kev sib txawv ntawm kev sib txawv, tsheb thiab kev lag luam kev lag luam, peb muab cov cranes no rau ntau yam kev ua thiab kev ua tiav. Peb kuj kuaj qhov no tib Girder Choj Crane raws li tus txheej txheem thoob ntiaj teb los xyuas kom zoo thiab ua haujlwm zoo.

Nta

Lub teeb yuag

Muaj kev nyab xeeb rau kev siv

Zoo sib xws

Tib Girder Choj Crane

Kub Choj Cranes (Ib Hom Girder Hom / Ob Chav Girder Hom):

Peb yog cov chaw tsim hluav taws xob ntawm Ib qho Girder Kub / Choj Cranes li 20 MT Capacity thiab ob zaug Girder Kub / Choj Cranes mus txog rau 60 MT Capacity.

Peb cov khoom siv yog tsim thiab manufactured raws li STD yog

Specification

Peev Xwm	T	1
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20
Crane mus ncig teb chaws ceev	m / min	20
Tag nrho qhov hnyav	kg	1590	Xyoo 1960	2390	2850	3060	3550	4610	5660
Max. Log load	KN	8.7	9.9	11	12.2	12.8	14	16.7	19.4
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	1.7
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	490			530		580	660	745
Tsheb sab saum toj rau nqe lauj	H4	910		955	970			990	1010
Crane paus nrug	W	1500	2000	2000	2500	2500	3000	3500	4000
Crane dav	B	2000	2500	2500	3000	3000	3500	4000	4500
Ntaus tau ua txhaum	S1	796
Nqe lem txoj cai txwv	S2	1274

Peev Xwm	T	2
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20
Crane mus ncig teb chaws ceev	m / min	20
Tag nrho qhov hnyav	kg	1680	2140	2670	3480	3760	4400	5680	6850
Max. Log load	KN	13.6	15.2	16.7	18.8	19.5	21.2	24.4	27.4
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	3.4
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	490		580	660		785	820	875
Tsheb sab saum toj rau nqe lauj	H4	1080	1125	1140	1160		1135	1200	1250
Crane paus nrug	W	1500	2000		2500		3000	3500	4000
Crane dav	B	2000	2500		3000		3500	4000	4500
Ntaus tau ua txhaum	S1	796
Nqe lem txoj cai txwv	S2	1274

Peev Xwm	T	3
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20					30
Tag nrho qhov hnyav	kg	Xyoo 1860	2350	3120	3680	3970	5170	59500	8100
Max. Log load	KN	18.6	20.5	22.6	24.2	25	28.1	30.1	35.5
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	4.9
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	530	580	660	725		835	880	940
Tsheb sab saum toj rau nqe lauj	H4	1270		1290	1305		1295	1330	1370
Crane paus nrug	W	1500	2000		2500		3000	3500	4000
Crane dav	B	2000	2500		3000		3500	4000	4500
Ntaus tau ua txhaum	S1	819
Nqe lem txoj cai txwv	S2	1291

Peev Xwm	T	5
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20					30
Tag nrho qhov hnyav	kg	2220	2860	3430	4440	4790	5550	68000	8990
Max. Log load	KN	28.7	31.4	33.2	36	37	39.1	42.3	47.9
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	8.3
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	580	660	725	835		880	940	1020
Tsheb sab saum toj rau nqe lauj	H4	1460	1460	1475	1465		1500	1540	1520
Crane paus nrug	W	1500	2000		2500		3000	3500	4000
Crane dav	B	2000	2500		3000		3500	4000	4500
Ntaus tau ua txhaum	S1	842
Nqe lem txoj cai txwv	S2	1310

Peev Xwm	T	10
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	7 lossis 7 / 0.7
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20					30
Tag nrho qhov hnyav	kg	3060	3950	4640	5590	6010	7420	9220	14000
Max. Log load	KN	50.8	56.4	59.4	62.5	64	68	74.1	85.1
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	13.8
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	735	835	890	880		920	1065	1160
Tsheb sab saum toj rau nqe lauj	H4	Xyoo 1815	Xyoo 1815	1840	Xyoo 1950		1970	1865	Xyoo 1890
Crane paus nrug	W	1500	2000		2500		3000	3500	4000
Crane dav	B	2000	2500		3000		3500	4000	4700
Ntaus tau ua txhaum	S1	1293
Nqe lem txoj cai txwv	S2	1893

Peev Xwm	T	16
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	3.5 lossis 3.5 / 0.35
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20					30
Tag nrho qhov hnyav	kg	3390	4420	5760	7350	7940	9210	13170	15300
Max. Log load	KN	76.5	84.3	89.6	94.9	97	100.9	111.4	117.2
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	13.8
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	835	890	980	1065		1135	1200	1300
Tsheb sab saum toj rau nqe lauj	H4	2445	2470	2520	2495		2545	2590	2600
Crane paus nrug	W	1500	2000		2500		3000	3500	4000
Crane dav	B	2000	2500		3000		3500	4200	4700
Ntaus tau ua txhaum	S1	1293
Nqe lem txoj cai txwv	S2	1893

Peev Xwm	T	20
Tau Txais	m	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Lifting qhov siab	m	6, 9, 12, 18, 24, 30
Lifting ceev	m / min	3.5 lossis 3.5 / 0.35
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20					30
Tag nrho qhov hnyav	kg	5270	6710	8550	10110	10850	12600	14280	14690
Max. Log load	KN	99	109.1	116.3	121.8	124.5	129.9	134,5	135.8
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	19.3
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5	19.5	22.5	25.5	28.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	900	970	1050		1130	1200	1300
Tsheb sab saum toj rau nqe lauj	H4	2400	2430	2490		2550	2590	2600
Crane paus nrug	W	2000	2000		2500		3000	3500
Crane dav	B	2700			3200		3700	4200
Ntaus tau ua txhaum	S1	1394
Nqe lem txoj cai txwv	S2	1933
