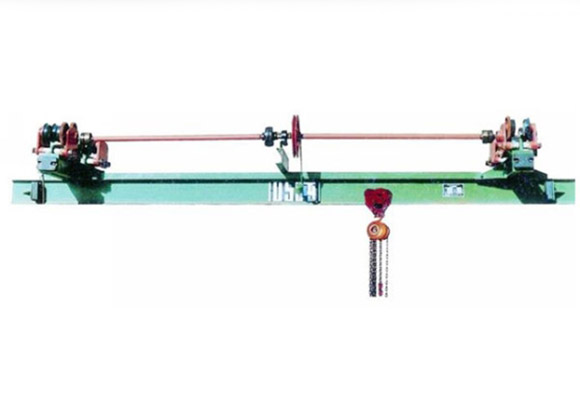

Manually Ua Hauj Lwm Tib Girder Nyiaj Siv Tuav Crane
Manually Operated nkaus xwb Girder Nyiaj siv ua haujlwm Crane Hauj lwm lawm ntawm tus qauv ntawm tus qauv crane yog nyiaj hauv kev ua haujlwm crane yog ib qho kev siv nyiaj hauv kev ua haujlwm crane, txhua txoj kev tsav yog tsav ntawm tes, nws siv nyob rau hauv qhov chaw uas tsis muaj fais fab. Qhov nyiaj siv ua haujlwm ntawm lub crane (choj crane) yog tus tsim los ntawm ntau tsim nyog ...
Manually Ua Hauj Lwm Tib Girder Nyiaj Siv Tuav Crane
Kev piav qhia
SL qauv phau ntawv tsav tsheb nyiaj overhead crane yog ib qho nyiaj ntxeev ntawm cov nyiaj siv ua haujlwm crane, tag nrho cov lus taw kev yog tsav ntawm tes, nws yog siv nyob rau hauv qhov chaw uas tsis muaj fais fab qhov chaw.
Qhov nyiaj siv ua haujlwm ntawm lub crane (choj crane) yog tus qauv tsim los ntawm cov qauv tsim nyog thiab lub zog dua li hlau, tag nrho cov nqaj loj yog ua los ntawm I-lub taub hau los yog lub thawv ncej steel hlau, qhov kawg tsheb yog tsim los ntawm C-section nqaj.
Qhov nyiaj siv ua haujlwm ntawm lub crane (choj crane) yog siv nrog kev sib daj sib deev raws li ib txheej tiav.
Lub peev xwm ntawm 1 tuj rau 10 tons. Kev ncua ntawm 5m mus rau 14m, ua haujlwm qib A1-A3. Ua hauj lwm kub hauv -25 rau + 42 centigrade.
Txoj kev siv nyiaj overhead no txwv tsis pub siv rau hauv cov hluav taws kub, tawg mus corrosives ib puag ncig.
Specifications
Peev Xwm | T | 1 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 5.3 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 650 | 850 | 1090 | 1310 |
Max. Log load | KN | 0.65 | 0.73 | 0.81 | 0.86 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 520 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 550 | 580 | 610 | 650 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 360 | 380 | 395 | 420 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 2 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 5.9 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 700 | 870 | 1320 | 1550 |
Max. Log load | KN | 1.13 | 1.19 | 1.29 | 1.40 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 520 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 720 | 750 | 790 | 870 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 400 | 415 | 440 | 490 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 3 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 4.7 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 810 | 1200 | 1460 | 1800 |
Max. Log load | KN | 1.61 | 1.79 | 1.87 | 1.97 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 520 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 900 | 940 | 980 | 1030 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 460 | 485 | 510 | 540 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 5 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 4.7 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 960 | 1360 | Xyoo 1730 | 2210 |
Max. Log load | KN | 2.5 | 2.75 | 2.86 | 3.01 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 600 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 1210 | 1250 | 1300 | 1360 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 520 | 560 | 585 | 625 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 10 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 4.2 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 1420 | Xyoo 1870 | 2250 | 2830 |
Max. Log load | KN | 4.89 | 5.29 | 5.44 | 5.65 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 720 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 1390 | 1440 | 1490 | 1550 |
Crane paus nrug | W | 1800 | |||
Crane dav | B | 2600 | |||
Ntaus tau ua txhaum | S1 | 555 | 585 | 615 | 650 |
Nqe lem txoj cai txwv | S2 | ||||
