Cov Tsiaj Qus Ib Qho Girder Choj Crane

Txhawb tshuaj

Cov Tsiaj Qus Ib Qho Girder Choj Crane

Kev piav qhia

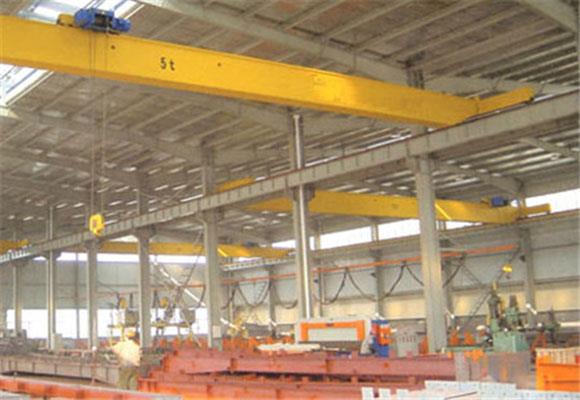

Cov Tsiaj Qus Ib Qho Girder Choj Crane yog tsim los ntawm girder weld los ntawm steel phaj thiab I-steel, kawg nkag, fais hoist thiab mus ncig tebchaws mechanism. Lub fais fab fais fab raws li sab flange ntawm I-hlau ntawm lub girder los ua tiav tsab xov xwm kev thim khoom. Nws nta lub teeb pom kev zoo thiab kev yooj yim installation thiab txij nkawm, thiab yog dav siv rau ntau qhov chaw rau kev sib tw, xws li factories, warehouses thiab khoom vaj khoom tsev. Nws raug txwv tsis pub siv nyob hauv cheeb tsam nrog kev mob loj, tawg thiab kev tawm dag zog.

Cov Tsiaj Qus Ib Qho Girder Choj Crane yog tsim los rau kev ua haujlwm tsis tshua muaj neeg ua haujlwm. Qhov txawv ntawm lawv yog txoj kev los ntawm kev siv fais fab. Cov Hluav Taws Xob ntawm Tsawg Lub Npe Ntawm Cov Tsiaj Qus Ib Cov Nyiaj Girder Choj Crane khiav khiav hauv qab flange phaj ntawm cov plhaub thiab lub fais fab ntawm tus Girder Choj Crane yog khiav ntawm ib sab ntawm lub zais, uas nce qhov chaw ua haujlwm ntawm kev sib txuas thiab txo qhov kev sib xyaw thiab nqi.

Yog tias koj qhov kev cob qhia yog nqaim lossis tsis txaus, xaiv qhov hom crane!

Specification

Peev Xwm	T	3
Tau Txais	m	7.5	11.5	14.5	17.5		19.5	22.5
Lifting qhov siab	m	6, 9, 12,
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20				30
Tag nrho qhov hnyav	kg	2705	3519	4278	5066		5422	6877
Max. Log load	KN	20.1	23.38	24.51	28.05		29.02	32.93
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	4.9
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5		19.5	22.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	1065		1130	1180		1230	1300
Tsheb sab saum toj rau nqe lauj	H4	-130		-65	-15		35	105
Crane paus nrug	W	2500		3000			3500
Crane dav	B	3000		3500			4000
Ntaus tau ua txhaum	S1	1413
Nqe lem txoj cai txwv	S2	1496

Peev Xwm	T	5
Tau Txais	m	7.5	11.5	14.5	17.5		19.5	22.5
Lifting qhov siab	m	6, 9, 12,
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20				30
Tag nrho qhov hnyav	kg	3175	4000	4366	6066		6514	7507
Max. Log load	KN	29.7	33.7	36.47	40.13		41.49	44.27
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	8.3
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5		19.5	22.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	1170		1255	1280		1360	1410
Tsheb sab saum toj rau nqe lauj	H4	-175		-90	-65		15	65
Crane paus nrug	W	2500			3000		3500
Crane dav	B	3000			3500		4000
Ntaus tau ua txhaum	S1	1405
Nqe lem txoj cai txwv	S2	1496

Peev Xwm	T	10
Tau Txais	m	7.5	11.5	14.5	17.5		19.5	22.5
Lifting qhov siab	m	6, 9, 12,
Lifting ceev	m / min	8 lossis 8 / 0.8
Hoist mus ncig ua si	m / min	20, 30
Crane mus ncig teb chaws ceev	m / min	20				30
Tag nrho qhov hnyav	kg	4047	5378	6542	7741		8312	9804
Max. Log load	KN	49.78	57.88	62.64	66.83		68.83	73.2
Rail tau pom zoo	Qauv	24kg / m
Tag nrho lub cev muaj zog	kw	13.8
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	7.5	11.5	14.5	17.5		19.5	22.5
Tsheb saum toj kawg nkaus rau cov crane saum	H	1075		1195	1305		1385	1475
Tsheb sab saum toj rau nqe lauj	H4	-175		-90	-65		15	65
Crane paus nrug	W	2500		3000			3500
Crane dav	B	3000		3500			4000
Ntaus tau ua txhaum	S1	1840
Nqe lem txoj cai txwv	S2	1840
