Basic Info

Lub Npe: Ib Leeg Hluav Taws Xob Tuav Khoom Taw Qhia Crane

Qauv TSIS MUAJ: LB

Lifting Qhov siab: mus txog 20m

Pawg Ua Hauj Lwm: A3-A5

Kev Thaiv Tswj: Pendent / Wireless

Daim Ntawv Thov: Siv Kev Siv, Rhiav Kev Siv, Tsuas Siv Tsiaj

Kev Tua Tsiaj: Cov Hluav Taws Xob

Hwj chim Source: Fais

Tsiv Yam: Log

Kev Nruab Nrab: Sib koom ua ke

Ntauwd Crane Hom: Nyiaj siv ua haujlwm Crane

Thauj Pob: Ntoo Lub Thawv

Kev qhia: Muaj peev xwm: 2-10T

Tau Txais: 5-30M

Keeb kwm: Henan, Suav teb

Cov Lus Qhia Txog

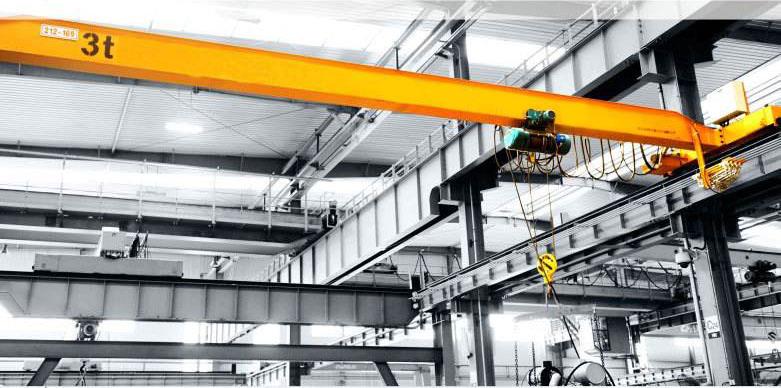

Qhov pov thawj crane no yog tsim los rau cov kev cob qhia uas muaj roj ntau qhov hluav taws xob uas ua rau ua rau tawg tau. Nws tawg tau ntawv pov thawj yog Exd II BT4, Exd II CT4. Qhov pov thawj crane no yog qhov tshwj xeeb tshaj yog rau ib qho kev ua haujlwm uas muaj cov pa taws uas muaj hluav taws xob los yog cov khoom tawg uas yuav ua rau tawg taus.

1- Tshuab Mechanism Lifting

- Monorail hlau hlua los yog saw hoist xaiv:

- Ntaus ceev: ib zaug lossis ob li ib qho yuav tsum tau muaj

- Trolley Speed: Ib Leeg lossis Dual los yog Kauj Ruam tsawg dua li ib qho xav tau

- Cov kev ua tau zoo tshaj plaws nrog cov nqi pheej yig

2-Thoob Haum thiab Cov Tsav Tsheb

- Nyuaj khov lub thawv hom kawg rooj zaum

- Cov qauv tsim

- Lub taub hau khov lub taub hau los yog lub tshuab muag pib thaum xaiv

- Tsav tsheb khiav ceev: Ib qho los yog Dual los yog Kauj Ruam tsawg dua raws li tau teev tseg

3-Ntej Girder

- Rigid welded lub thawv Girder los yog khov khiab steel khov

- Cov qauv tsim

- Ua los ntawm steel Q235 los yog Q345

- Tsim Kev Deflection≤1 / 750 ntawm kev ncua

4-Tswj

- Kev tswjfwm tus kheej pendent taug kev nrog C-khiav

- Wireless tswj raws li kev xaiv

- Kev tswj raws li kev xaiv

5-Fais Ntu

- Tus cwj pwm hluav taws xob (raws li kev xaiv)

- Cov kev tswj panels yog IP54 lossis IP44 nyob ntawm kev ua haujlwm ua haujlwm.

- Cheebtsam yog qhov chaw nyob rau hauv kev txij nkawm tus phooj ywg txoj kev, thiab tag nrho qhov kev npaj muaj kev tiv thaiv zoo

- Festoon cables raug tshem tawm ntawm cable saddles, tsau rau cov kab hauv tsheb, khiav hauv cov khoom C-galvanized.

- Lub tshuab fais fab loj nyob rau ntawm hom Schneider los yog Siemens

6-Painting

- Corrosion tiv thaiv kab xeb tawm ntawm kev tua blasting SA 2.5

- Thawj txheej ntawm txheej epoxy 30 microns

- Ob txheej txheej txheej epoxy 30 microns

- Peb Txheej Txheej ntawm Polyethylene 40 microns

- Nruab nrab ntawm tuab: li 100 microns

- Xim: daj lossis txiv kab ntxwv raws li kev xav tau

7-Tiv Thaiv Kev Tiv Thaiv

- Hloov kho kub ceev

- Kev tiv thaiv kev tiv thaiv

- Kev tiv thaiv lub ntiaj teb

- Hla mus ncig thiab kev tiv thaiv mus ntev ntev

- Kev tiv thaiv kev tiv thaiv

- Kho kom tsis muaj zog ntawm lub cev

Ntaus Txiaj Ntsig

- Teeb maus taus

- Cov khoom ua tau zoo tshaj plaws nrog cov nqi pheej yig

- Hloov qej seem

- 2 xyoo warranty

- Kev tu yooj yim thiab Hloov yooj yim ntawm cov khoom

- Tsis tshua muaj nqi tsheb thauj mus los thiab ceev ceev



Kos duab
