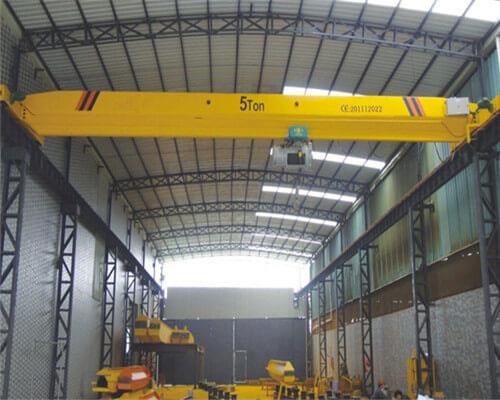

5 Tuj Tib Nyiaj Girder Nyiaj Siv Ua Haujlwm Crane nrog Fais Hoist

- Apr 26, 2018 -

Basic Info

Lub Npe: 5 Tuj Tib Nyiaj Girder Nyiaj Siv Ua Haujlwm Crane Nrog Fais Hoist

Qauv TSIS MUAJ: LDA

Hom: Ib Leeg Crane

Max. Lifting Load: 5 tuj

Rated Loading Capacity: 0.5-32t

Max. Lifting Qhov siab: 30m

Tau Txais: 7.5m-31.5m

Lifting Speed: 8 / 0.8 (7 / 0.7) M / Min

Mus ncig teb chaws ceev: 20/30 M / Min

Ua Haujlwm Ua Haujlwm: A3-A5

Daim Ntawv Thov: Siv Kev Siv

Hwj chim Source: Fais

Tsiv Yam: Log

Thauj Pob: Daim Ntawv Lub Thawv thiab Ntoo Rooj Ntoo

Specification: CCC, ISO9001

Keeb kwm: Xinxiang, He'nan, Suav teb

Cov Lus Qhia Txog

Khoom Qhia

LD qauv ib leeg nqaj hlau crane tau zoo tuaj thiab tsim los ntawm LDA qauv. Nws yog characterized los ntawm ntau tsim nyog qauv thiab siab dua zog hlau raws li ib tug tag nrho. Siv ua ke nrog cov qauv CDi, MDI qauv fais hoist ua tiav teeb, nws yog lub teeb meem lub crane nrog lub peev xwm ntawm 1 mus rau 10 tons. Lub ncua sij hawm yog 7.5-22.5m. Ua haujlwm qib A3-A5. Ua haujlwm kub yog -25 rau 40.

Cov khoom no yog siv dav hauv cov nroj tsuag, chaw cia khoom, cov khoom muag khoom nqa khoom. Nws raug txwv tsis pub siv cov khoom siv rau qhov chaw ua taus tawg, tawg lossis muaj kev kub ntxhov.

Cov khoom no muaj ob txoj kev ua haujlwm, hauv av los yog chav siv ua haujlwm uas muaj qhib qauv thiab kaw qauv thiab muaj peev xwm ntsia tau rau sab laug lossis sab xis raws li qhov teeb meem. Thiab cov kev taw qhia ntawm nkag mus rau hauv lub qhov rooj muaj ob hom, qhov kev hla thiab qhov xaus kom thiaj li txaus siab rau cov neeg siv, xaiv nyob rau hauv ntau yam kev mob.

Cheebtsam

Beam	Lub Vev Txiab, Cov Khoom Dhau Dhau, Lub Teeb Nroj Tsiaj Tsim los ntawm Lub Thawv Phaj Tsim / Cov Quav Tshooj. Yog tias yuav tsum tau 100% radiography ntawm tag nrho cov taub vias cov pob qij txha ntawm choj thiab cov thawv kawg yuav muab tau.
Hluav taws xob qhov chaw	Schneider hom / DK1 hom
Motors	Nquag pib, ntxig & txhuam, hmoov txhim khu kev txhim kho siv ko taw / flange mounted TESC / TEFC, Sq. cage motors nrog kev ruaj ntseg choj, kev tiv thaiv hoob FH, IP54 tiv thaiv rau kev xaav, CT & LT cov lus qhia. Tawb Cage Induction Crane lub luag hauj lwm ntawm reputed ua (Motors yuav siv tau zoo dua ntawm JIAMUSI / NANJINGZONGCHANG ua), CDF25%, Toted npog, kiv cua txias, Rwb thaiv tsev Class-F & lees tias yam tshiab kawg GB / T 1032-2005.
Brakes	Kev Nyuaj Hloov Poob Kev Nyuaj Rhiav Hom Conical rotor los yog "Ua tsis muaj kev nyab xeeb" nkaus Hom Electro-hydraulic drum / disc brakes hom los tuav lub tswv yim nyob rau hauv txoj hauj lwm instantaneously sai li sai tau thaum fais fab mov yog 'OFF' los yog txhob txwm ua rau tag nrho cov ntawv tsa suab.
Iav Box	Txoj kev hlais hlais hlais hlais hlau / pev / pearl nyuaj rau 250 mus rau 350 BHN uas ua los ntawm cov roj carbon alloy, kev lag luam thiab lub neej ntev ntev, muaj peev xwm muab tau nrog SEW / ABB hom zoo iav kem
Hluav taws xob Vaj Huam Sib Luag	Modular tsim, yooj yim rau nruab thiab tswj, kev lag luam txhim kho, fuses tsawg circuitry, ducted thaiv thiab compact terminals. Tsav overload tiv thaiv kom tsis txhob overloadingIf lub tswb tswj, nws muaj peev xwm yuav nruab nrog Cua txias thiab nrog yooj yim thiab muaj vaj huam sib luag tswj vaj huam sib luag.
Txwv Txais	Kom dhau Hoisting thiab Tshaj txos: Txwv, kho hom. Ob hom kev ua haujlwm rau CT rau ob qho kev coj thiab LT ob qho tib si kev ua ntawm reputed ua.Sim txwv tsis pub khiav mus rau cov neeg nres tsheb yuav muab los tiv thaiv kev hla mus ncig ntawm txhua txoj haujlwm
Tswj vaj huam sib luag	Los ntawm Kev Tswj Lub Xeeb xws li nrog Tus Maub Los nrog Lub Siab Lawm rau ON, OFF, UP, DOWN, Forward, Rev, Left, Right, Choj Lub Teeb & Kev Kub Ntxhua Kev Tawm. Kev Siv Hluav Taws Xob Uas Siv Hluav Taws Xob 36Volts, dai tom qab ntawm Choj Girder.Qhov kev tswj kav ntawm crane yuav tsum muaj Fuses, hloov huab cua taws, tsheb nqes hluav taws xob nqes, txuas thiab lwm yam. Cov xov hlau / cables yuav tsum raug muab suav ua ib kab ntawv hauv circuit. Daim duab ntawm daim duab ntxig rau daim ntawv sab nraud uas muaj nyob rau sab hauv ntawm lub qhov rooj.

Cov Ntaub Ntawv Kev

Lifting peev (T)

1,2,3,5,10T

16,20T

Kev sib tshuam (M)

7.5-22.5M

Crane mus ncig teb chaws mechanism

Mus ncig teb chaws ceev (m / min)

Reducer piv

58.78

39.38

26.36

19.37

15.88

58.78

39.38

26.36

19.37

15.88

Lub cev muaj zog

Qauv

ZDY21-4

ZDY122-4

ZDY131S-4

Lub hwj chim (kw)

2 × 0.8

2 × 1.5

1.5 × 2

2.2 × 2

Kev sib hloov (m / min)

1380

Lifting mechanism

Cov qauv fais fab

CD1 / MD1

MD1 / HC

(fais fab fais fab) & fais fab ho coj mus ncig ua si

Lifting ceev (m / min)

8,8 / 0.8 7,7 / 0.7

3.5 3.5 / 0.35

Lifting qhov siab (m)

6, 9, 12, 18, 24, 30

12,18,24,30

Mus ncig teb chaws ceev (m / min)

20 (30)

Lub cev muaj zog

Taper Nas Ncuav-Qeb Hom

Ua hauj lwm duty

A3-A5

Lub hwj chim

380V 50HZ peb theem

Lub cev muaj zog

270 hli

370 hli

Dav ntawm txoj kev

37-70 hli

Zoo siab:

1). Thawj chav kawm zoo nrog cov nqi sib tw

2). Kev tsim kho, kev pom kev siv qhov loj ntawm cov chaw ua haujlwm

3). Tsim nyog qauv, kev ua tau zoo

4). Tswj cov khoom kom yooj yim thiab muab qhov khoom thauj raws nraim

5). Pib pib thiab siv ceev xwmphem

6). Superiorsafety thiab kev ntseeg tau

7). Tsawg suab, khoom noj khoom haus thiab kev pom zoo

8). Yam tsawg kawg nkaus & Cov txij nkawm uas yooj yim, kev hloov pauv zoo rau cov khoom thiab cov khoom

9). Txhawb hluav taws xob

10). "One-Stop Shop" rau koj cov crane thiab ho xav tau kev pab

Kev ruaj ntseg nta:

1. Kev tiv thaiv kom muaj kev tiv thaiv: Yog cov khoom siv ntau tshaj qhov muaj peev xwm, lub crane yuav muab lus ceeb toom zoo rau kev tiv thaiv nws tus kheej.

2. Kev Tiv Thaiv Thaum Muaj Xwm Ceev: Yog tias cov neeg khiav dej num ntsib nrog qee qhov xwm ceev, peb yuav pib lub zog nres kev kub ceev kom tiv thaiv cov khoom muaj nqi.

3. Txoj Kev Tswj: Kev tswj hauv chav tsev lossis kev tswj chaw taws teeb kom tsis txhob raug mob rau cov neeg khiav dej num

4. Nqa lub cav loj: nrog thermal thaiv thiab thaiv kev tiv thaiv.

5. Hooks nrog latch

6. Cov khauj khaum ntawm cov roj hmab

7. Cov khoom tiv thaiv

8. Crane hloov mus thiab xaus kev hloov kawg

9. Cov yam ntxwv ntawm kev sibtham yog raug kuaj ua ntej pom zoo.

10. Txhua tus cranes yuav tsum yog preassmebled thiab kuaj ua ntej tso tawm hauv lub tsev ua haujlwm thiab muab cov ntawv pov thawj ntawm kev xeem.

Cov Kev Pab:

Lub caij muaj kev ruaj ntseg: Peb muab 12 lub hlis ua tiav rau lub cev loj. Tsis pub dhau 12 lub hlis, muaj qhov teeb meem zoo nrog lub cev (tsis xam nrog cov seem hnav), peb yuav npaj peb cov kws ua haujlwm kom paub muab kev pab kho. Tsis tas li ntawd peb yuav muab ib pawg hnav ib qho rau dawb.
Kev Pab Txheej Txheem: Yog tias tus neeg tsis xav tau peb cov engineers rau kev txhim kho, peb yuav muab Kev Pab Tawm Tswv Yim Tswj Haujlwm. Tsis tas li peb yuav npaj cov engineers kom muab cov kev pab cuam installation yog neeg xav tau.
Caij nrig raws caij nyoog rau cov khoom siv pabcuam crane. Coj cov neeg muas zaub tawm tswv yim, tsim cov khoom zoo thiab kev pab cuam.
Txhua yam teeb meem tawm hauv kev siv, yog tias qhov ntawd vim tias qhov zoo peb yuav tau ua tag nrho lub luag hauj lwm, thiab npaj kev koom tes tom qab muag muag los muab kev daws teeb meem. yog tias vim tias ntawm kev ua haujlwm los yog lwm yam teeb meem, peb kuj yuav muab cov kev pab cuam los txhawb lossis tsim peb cov engineers los pab yog tias cov neeg xav tau.

Vim li cas peb ho xaiv?

1. Ib qho mus rau ib qho kev pabcuam lav zoo tshaj kev yuav khoom rau koj.

2. Muaj peev xwm ua tau kom muaj peev xwm thiab cov neeg ua haujlwm ntiag tug tau lees tias koj tus me nyuam luv luv.

3. Txuj kev tshuaj ntsuam xyuas kev ruaj ntseg cov khoom zoo.

Daim Ntawv Ceeb Toom:

1. Muaj peev xwm.

2. Taw siab qhov siab: ___m (sib kis nruab nrab rau hauv pem teb)

3. Ncua ntev: ___m (cov chaw nres tsheb mus rau qhov chaw nres tsheb)

4. Khoom siv hluav taws xob: Voltage.

5. Koj puas xav kom peb muab ciav hlau? Yog tias koj xav tau, qhia peb tias ntev npaum li cas.

6. Yuav zoo dua yog tias koj tuaj yeem xa peb daim duab rhiav.

7. Nqe lus them nqi: T / T, L / C.
