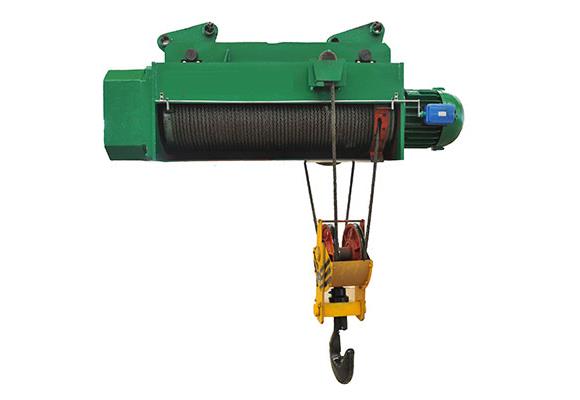

Hlau hlua Electric Hoist

Hlau hlua Electric Hoist

Kev piav qhia

CD hom hluav taws xob hlua hlua Hoist yog cov khoom me me-lifting.Which tau mounted rau txhua hom cranes, xws li gantry crane, overhead crane, jib crane thiab lwm cov crane tshwj xeeb nqa txhua hom khoom.Yuav hloov me me, nws kuj yuav siv tau raws li lub txiv hmab txiv ntoo winch.Dab tsi ntau, nws yuav tsum tau yooj yim nrog sib txawv heights los ntawm kev tswj tes.

Raws li hom khoom nqa dav hlau, tus qauv CD1 / MD1 yog nruab nrog Upper / Lower limit protector kom ua haujlwm zoo. Nws yog siv rau cov khoom siv thiab kev thauj khoom hauv lub Hoobkas, kuv lub tshav pob, qhov chaw nres tsheb hauv tsev, khoom siv chaw nres tsheb thiab chaw cia khoom .Nws yog ib qho kev ua tau zoo txhawb nqa kev txhim kho hauv kev ua haujlwm kev ua haujlwm thiab kev txhim kho kev ua haujlwm.

Raws li cov cuab yeej siv me me, nws muaj qhov zoo ntawm kev cog kev compact, lub luj, me ntim, Ntev Ntoo Thoob Ntiajteb, ib qho yooj yim-ua lag luam thiab lwm yam. Reducer adopts tawv hniav tsav tsim, uas nyiam lub neej ntev thiab kev ua haujlwm siab .Qhov cav tau txais taper rotor brake lub cev, nrog rau txoj kev ruaj ntseg qis thiab siab dua ob txoj kev.

Tsuas muaj ib lub Caj Dais Hluav Taws Xob Hluav Taws Xob Raug Tsav Qis; MD1 Fais Ntoo Hluav Taws Raug Hoist yog ceev thiab qeeb ob hom ntawm kev ceev nrawm, tsis yig thiab meej, rau ntau leej sib dhos.

CD hom hluav taws xob hlau hlua Hoist muaj tsuas yog ib qho kev ceev, uas tuaj yeem los ua tau cov ntawv thov thaum MD hom fais fab hlau hlua Hoist muaj ob lub zis: kev ceev thiab qis qeeb.

Thaum twg tus MD hom yog nyob rau hauv qis qis, nws muaj cuab kav ua tau kev npliag thiab thau khoom tawm, mounding ntawm lub thawv xuab zeb, kev siv lub tshuab cov cuab yeej siv thiab lwm yam.Thus qauv MD fais fab hlau hlua Hoist yog siv ntau dua cov qauv CD.

Nta

Cov menyuam

Cov menyuam no yog ua los ntawm cov kav dej zoo tsis sib haum thiab xa cov hwj huam mus los ntawm kev nplua. Nws cov ntaub ntawv tau ua ntawm welded steel phaj. Qhov no yog qhov tseem ceeb ntawm txoj kev hoist.

Nqe lauj

Lub sib tsoo yog forged thiab txuas nrog lub rubey sib tsoo los ntawm lub npoo npab kabmob, vim li ntawd tus sib ntsib tau tig dawb dawb.

Hooks tsis ntau tshaj 5 ntim lifting muaj peev xwm ntawm ib leeg-pulley style thiab saum toj 10ton yog double-pulley style.

Hlau hlua

Txais siv zog siab xaim hlua nrog tensile lub zog ntawm 1770 Mpa, zoo kev nyab xeeb kev kawm thiab lub neej ntev kev ua haujlwm.

Hluav taws xob qhia

Txuj ci hlua qhia yog tsim los ntawm Q235b steel.

Hoisting lub cev muaj zog

Lub tshuab quab yuam nrog lub zog sib zog ua kom muaj zog loj yog ua haujlwm raws li kev coj mus ncig ntau zaus thaum mus ua haujlwm tsis ua haujlwm.

CD1 qauv xaim hlua fais hoist yog nruab nrog ZD style tib lub cav qev, thaum MD1 yuav nruab nrog ZDS style ob chav qeeb tsav.

Qhov txawv ntawm qhov ceev ceev thiab qhov qis ceev yog 10: 1.

Reducer

Cov iav thiab cov looj yog ua los ntawm hlau lossis hlau los tsim kho cov pa roj carbon. Tag nrho cov reducers txais 3-theem qib iav. Kev kho kom sov yog tsim kom muaj kev ruaj ntseg thiab kev pab cuam lub neej. Thaum kawg, lub thawv-lub thawv thiab lub npov-npog yog tsim los ntawm cam khwb cia hlau. Ob qho tib si zoo co-txo thiab kaw tightly.

Cov khoom siv hluav taws xob

Cov hluav taws xob mechanism muaj hluav taws xob tswj lub thawv, limiter, khawm hloov, txuas hlau thiab lwm yam.

Raws li txoj kev taw qhia khawm ntawm lub khawm hloov, nias lub khawm kom raug thiab tswj qhov hoist los ntawm kev tawm ntawm-thiab-tawm ntawm qhov chaw txuas rau hauv lub thawv tso cai. Qhov kev khiav hauj lwm muaj hluav taws xob feem ntau yog 36V.

Kev tiv thaiv kev nyab xeeb

* Tsav tsheb ciav hlau yog siv raws li qis thiab qis, uas muaj peev xwm ntog tau tawm ntawm lub hwjchim txuas hluav taws xob yog tsuam tsiv mus rau qaum los yog qis dua kom txo tau lub tshuab.

* Kev Tshaj Tawm Tshaj: Cov fais fab hlau hlua hluav taws xob siv hluav taws xob siv hluav taws xob, kom tag nrho qhov nyhav tag nrho yuav tsis ntau tshaj qhov nyhav nyhav nyhav siab; Yog hais tias rub txoj hlua ntawm hlua hlau yog ntau tshaj li ntawm 105% ntawm lub peev txheej, cov overload protector ntaus yuav rho txiav tawm lifting loop.

* Kev tiv thaiv thaum muaj xwm ceev nres

* Tshaj kub ntawm kev tiv thaiv kev tsav tsheb

* Kev tiv thaiv dhau kev tiv thaiv

* Theem tiv thaiv

* Cov khoom pov hwm tsawg dua

Tswj txoj kev

Pendent kab tswj

a.36V tswj kev ruaj ntseg tswj rau tib neeg.

b.Yuav tswj hwm, tsis muaj tus neeg tsav tsheb ntxiv lawm, khiav dej num tom qab kev taug kev mus los ntawm hoist

c.Kev thaus ruam khawm uas muaj xwm ceev kom ua kom muaj kev nyab xeeb nres

d.Connected nrog lub hluav taws xob trolley tshem tawm nyob rau hauv trolley

e.Protection chav kawm IP54 IP55

f.Operation lub neej tsis pub tsawg tshaj 500,000 lub sij hawm

Chaw taws teeb tswj

a.Taiwan Yuding los yog lub ntiaj teb nto moo hom,

b.24V tswj kev ruaj ntseg kev ruaj ntseg rau tib neeg.

c.Remote nrug: tsis pub tsawg tshaj 100 meters,

d.Easy los tswj, tsis muaj tus neeg tsav tsheb ntxiv lawm, ua haujlwm ntau dua nyob hauv av

e.Tens txhiab ntawm kev twb kev txuas zaus cov ntsiab lus, tsis cuam tshuam nrog txhua lwm

f.Kev thev nyom khawm lossis chaw ua chaw joystick uas muaj xwm txheej ceev.

g.Protection chav kawm IP54 IP55

h.Operation neej: tsis pub tsawg tshaj 500,000 lub sij hawm

Tus qauv tsim

a.GB3811 GB6067 JB / T9008.1 ~ 9008.2

Specifications

Lus cim: Lifting qhov siab tau customized ie 6m, 9m, 20m

Lus cim: Lifting qhov siab tau customized ie 6m, 9m, 20m
