Engineering Gantry Crane Engineering

Kev piav qhia

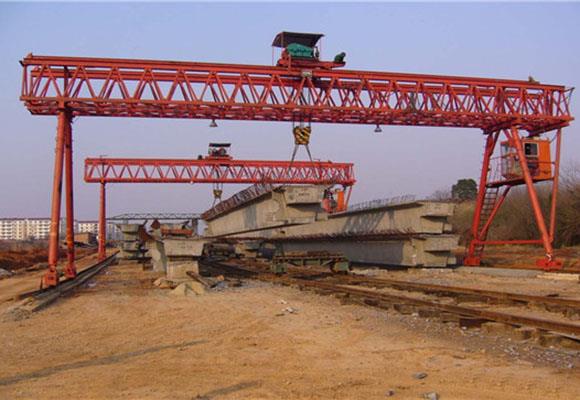

Engineering Gantry crane yog ib txoj hau kev tshwj xeeb ntawm kev txiav txim siab uas yog tsim los ntawm kev ua haujlwm ntawm txoj kev ua lag luam ntawm kev ua haujlwm raws li kev khiav haujlwm thiab kev ua haujlwm ntawm kev siv hauv av.

Tus engineering gantry crane muaj crab, gantry, trolley, mus ncig tebchaws mechanism, hydraulic turnover mechanism, cab thiab hluav taws xob cov khoom.

Nyob rau hauv lub roob ris yog muab hydraulic hla txoj kev ua lag luam, uas yog tsim los ntawm chaw ua hauj lwm hydraulic thiab ib lub luaj cig lauj.

Hauv nruab nrab ntawm cov cab kuj-lub nqaj yog ib txoj yas, uas yog siv los tuav ntau hom khoom.

Lub tsheb ciav hlau mus ncig ua si yog 4-log tsav hauv 8 lub log. Lub cav tsau rau ntawm lub tsheb ciav hlau los ntawm kev ntsug khiav ceev. Lub tsheb ciav hlau cua tsis sib haum yog nruab. Nws yog cais tawm ntawm txoj kev tsheb ciav hlau thaum lub crane nyob hauv qhov chaw ua haujlwm, thiab thaum twg lub crane tsis ua hauj lwm, tus neeg teb xov tooj yuav muab tso rau hauv lub clamp kom ntes cov kev khiav tsheb kom thiaj li zam tau cov crane zawv zawg.

Lub ntiaj teb kev dumping yog nyob ntawm kev tsim kho.

Nta

1. Tsim nyog tsim nyog thiab ua haujlwm zoo.

2. Pib pib thiab siv ceev xwmphem.

3. Kev nyab xeeb thiab txhim khu kev qha, lub neej ntev.

4. Tsis tshua muaj suab, khoom noj khoom haus zoo nrog kev pom zoo.

5. Qhov kev txhim kho yooj yim thiab kev saib xyuas yooj yim.

6. Hloov kom zoo rau cov khoom thiab cov khoom.

7. Crane tsav: IP54 lossis IP44, qib F F.

Specification

Peev Xwm	T	40
Tau Txais	m	20	30	40
Lifting qhov siab	m	9
Lifting ceev	m / min	1
Trolley mus ncig teb chaws ceev	m / min	10
Crane mus ncig teb chaws ceev	m / min	14
Max. Log load	KN	175	190	220
Rail tau pom zoo	Qauv	43kg / m
Tag nrho lub cev muaj zog	kw	22.8		26
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	20	30	40
Crane paus nrug	W	6000
Crane dav	B	8286
Ntaus tau ua txhaum	S1	1500
Nqe lem txoj cai txwv	S2	1500/2000

Peev Xwm	T	60
Tau Txais	m	20	30	40
Lifting qhov siab	m	9
Lifting ceev	m / min	0.95
Trolley mus ncig teb chaws ceev	m / min	10
Crane mus ncig teb chaws ceev	m / min	15
Max. Log load	KN	240	260	280
Rail tau pom zoo	Qauv	43kg / m
Tag nrho lub cev muaj zog	kw	30
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	20	30	40
Crane paus nrug	W	6000
Crane dav	B	8286
Ntaus tau ua txhaum	S1	2000
Nqe lem txoj cai txwv	S2	1500/2000

Peev Xwm	T	80
Tau Txais	m	20	30
Lifting qhov siab	m	9
Lifting ceev	m / min	0.8
Trolley mus ncig teb chaws ceev	m / min	10
Crane mus ncig teb chaws ceev	m / min	15
Max. Log load	KN	290	305
Rail tau pom zoo	Qauv	43kg / m
Tag nrho lub cev muaj zog	kw	31.4
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	20	30
Crane paus nrug	W	6000
Crane dav	B	8286

Peev Xwm	T	100
Tau Txais	m	20	30
Lifting qhov siab	m	12
Lifting ceev	m / min	0.8
Trolley mus ncig teb chaws ceev	m / min	10.5
Crane mus ncig teb chaws ceev	m / min	13
Max. Log load	KN	190	205
Rail tau pom zoo	Qauv	43kg / m
Tag nrho lub cev muaj zog	kw	46.4
Lub ntsiab qhov ntev (hli)	Kev ncua (m)	20	30
Crane paus nrug	W	12876
Crane dav	B	7500
Ntaus tau ua txhaum	S1	2000
Nqe lem txoj cai txwv	S2	2000
