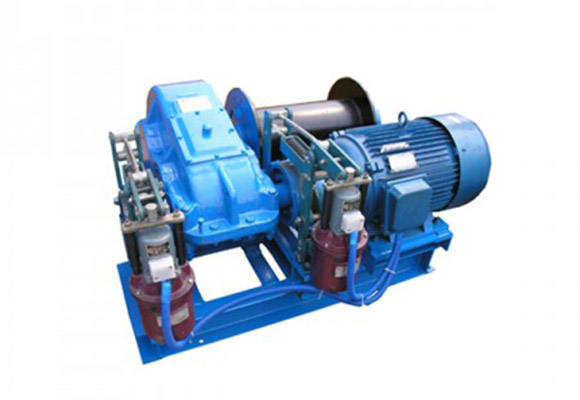

JK Series Tswj Control Winch
JK series hluav taws xob tiv thaiv winch JK hom high speed winch yog tsuas yog siv rau cov ntaub ntawv lfting thiab tracton qhov hnyav tee thaum siv. Nws kuj siv rau crane ua lub ntsiab hoist; nws yog qhov tshwj xeeb winch ntawm derrick thiab gantry thav duab thiab lifting trolley. Nws yog tsim rau kev tsim kho thiab ...
JK series hluav taws xob tiv thaiv winch
JK hom high speed winch yog siv rau cov ntaub ntawv lfting thiab cov cuj pwm ntim cov hnyav thaum lub sij hawm tsim kho. Nws kuj siv rau crane ua lub ntsiab hoist; nws yog qhov tshwj xeeb winch ntawm derrick thiab gantry thav duab thiab lifting trolley. Nws yog tsim rau kev tsim kho thiab tsim cov khoom me me ntawm constrction mine eare lifting hoobkas.
Kev Ntsuas Tshaj Plaws
Hom | Rated load (KN) | Tsav ceev (m / min) | Hlua Dia. (hli) | Orm dimension (hli) | Lub cev muaj zog (KW) |
JM10 | 100 | 8 | Ø 30 | 2090 * 1475 * 956 | 22 |
JM10B | 100 | 9.5 | Ø 30 | 1705 * 1598 * 985 | 22 |
JM12.5 | 125 | 8 | Ø34 | 2880 * 2200 * 1550 | 30 |
JM13.5 | 135 | 0-5 | Ø28 | 2990 * 2363 * 1650 | 22 |
JM16 | 160 | 10 | Ø37 | 3750 * 2400 * 1850 | 37 |
JM20 | 200 | 10 | Ø43 | 3950 * 2560 * 1950 | 45 |
JM 25 | 250 | 9 | Ø 48 | 4350 * 2800 * 2030 | 55 |
JM32 | 320 | 9 | Ø56 | 4500 * 2850 * 2100 | 75 |
JM50 | 500 | 9 | Ø 65 | 4930 * 3050 * 2250 | 90 |
JM65 | 650 | 10.5 | Ø64 | 5900 * 4680 * 3200 | 160 |
