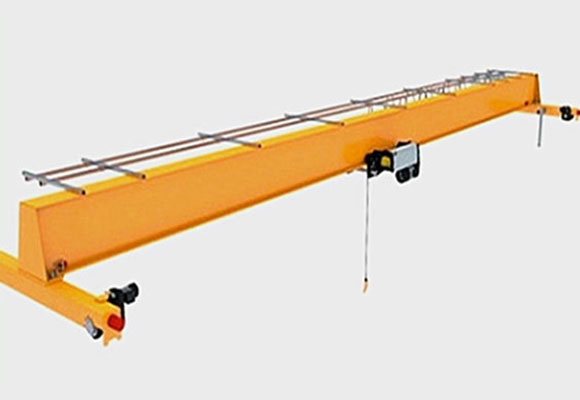

Manually Ua Ib Leeg Choj Crane
SL cov qauv kev tsav tsheb ceev choj crane yog tib lub tsho kev tuav tus choj crane, tag nrho cov lus taw kev yog tsav ntawm tes, nws yog siv nyob rau hauv qhov chaw uas tsis muaj fais fab qhov chaw. Qhov no crane crane yog tsiag ntawv los ntawm ntau tsim nyog ...
Manually Ua Ib Leeg Choj Crane
Kev piav qhia
SL cov qauv kev tsav tsheb ceev choj crane yog tib qho khoom siv nyiaj siv ua haujlwm crane, tag nrho cov lus taw kev yog tsav ntawm tes, nws yog siv nyob rau hauv qhov chaw uas tsis muaj fais fab qhov chaw.
Tus choj crane no yog qhov tsim los ntawm cov qauv tsim nyog thiab muaj zog dua hlau raws li ib qho lej, lub nqaj hlau yog ua los ntawm I-lub taub los yog lub thawv ncej steel hlau kab, lub tsheb tho kawg ua los ntawm C-section nqaj.
No choj crane siv nrog saw hoist ua tiav teeb.
Lub peev xwm ntawm 1 tuj rau 10 tons. Kev ncua ntawm 5m mus rau 14m, ua haujlwm qib A1-A3. Ua hauj lwm kub hauv -25 rau + 42 centigrade.
Lub choj crane no raug txwv tsis pub siv rau hauv cov hluav taws kub, tawg mus corrosives ib puag ncig.
Specifications
Peev Xwm | T | 1 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 5.3 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 650 | 850 | 1090 | 1310 |
Max. Log load | KN | 0.65 | 0.73 | 0.81 | 0.86 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 520 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 550 | 580 | 610 | 650 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 360 | 380 | 395 | 420 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 2 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 5.9 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 700 | 870 | 1320 | 1550 |
Max. Log load | KN | 1.13 | 1.19 | 1.29 | 1.40 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 520 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 720 | 750 | 790 | 870 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 400 | 415 | 440 | 490 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 3 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 4.7 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 810 | 1200 | 1460 | 1800 |
Max. Log load | KN | 1.61 | 1.79 | 1.87 | 1.97 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 520 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 900 | 940 | 980 | 1030 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 460 | 485 | 510 | 540 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 5 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 4.7 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 960 | 1360 | Xyoo 1730 | 2210 |
Max. Log load | KN | 2.5 | 2.75 | 2.86 | 3.01 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 600 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 1210 | 1250 | 1300 | 1360 |
Crane paus nrug | W | 1200 | 1600 | ||
Crane dav | B | 1800 | 2200 | ||
Ntaus tau ua txhaum | S1 | 520 | 560 | 585 | 625 |
Nqe lem txoj cai txwv | S2 | ||||
Peev Xwm | T | 10 | |||
Tau Txais | m | 5 | 9 | 12 | 14 |
Lifting qhov siab | m | 3-10 | |||
Trolley mus ncig teb chaws ceev | m / min | 4.2 | |||
Crane mus ncig teb chaws ceev | m / min | 5.0 | |||
Tag Nrho Nyhav | Kg | 1420 | Xyoo 1870 | 2250 | 2830 |
Max. Log load | KN | 4.89 | 5.29 | 5.44 | 5.65 |
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 5 | 9 | 12 | 14 |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 720 | |||
Tsheb sab saum toj rau nqe lauj | H4 | 1390 | 1440 | 1490 | 1550 |
Crane paus nrug | W | 1800 | |||
Crane dav | B | 2600 | |||
Ntaus tau ua txhaum | S1 | 555 | 585 | 615 | 650 |
Nqe lem txoj cai txwv | S2 | ||||
