Tsawg Lub Npe Ntawm Ib Leeg Nyiaj Girder Nyiaj Siv Ua Haujlwm Crane
Cov Tsiaj Qus Ntaus Girder Nyiaj Hauv Haujlwm Crane Nqe Tsawg Qub Girder Nyiaj Siv Tawm Crane yog tsim los ntawm girder weld los ntawm steel phaj thiab I-hlau, kawg nkag, fais hoist thiab mus ncig tebchaws mechanism. Lub fais fab fais fab raws li sab flange ntawm I-hlau ntawm lub girder mus ua kom tiav ...

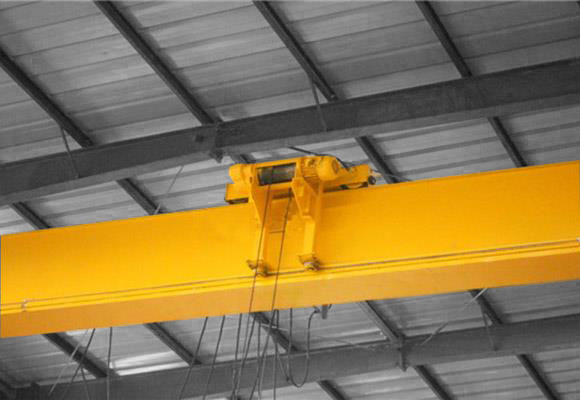

Tsawg Lub Npe Ntawm Ib Leeg Nyiaj Girder Nyiaj Siv Ua Haujlwm Crane
Kev piav qhia
Cov Tsiaj Qus Ntaus Girder Nyiaj Siv Tawm Haujlwm Crane yog tsim los ntawm girder weld los ntawm steel phaj thiab I-hlau, kawg nkag, fais hoist thiab mus ncig tebchaws mechanism. Lub fais fab fais fab raws li sab flange ntawm I-hlau ntawm lub girder los ua tiav tsab xov xwm kev thim khoom. Nws nta lub teeb pom kev zoo thiab kev yooj yim installation thiab txij nkawm, thiab yog dav siv rau ntau qhov chaw rau kev sib tw, xws li factories, warehouses thiab khoom vaj khoom tsev. Nws raug txwv tsis pub siv nyob hauv cheeb tsam nrog kev mob loj, tawg thiab kev tawm dag zog.
Cov Tsiaj Qus Ntaus Girder Nyiaj Siv Tawm Haujlwm Crane yog tsim rau cov kev ua haujlwm tsis tshua muaj haud. Qhov txawv ntawm lawv yog txoj kev los ntawm kev siv fais fab. Cov Hluav Taws Xob ntawm Tsawg Lub Npe Ntawm Ib Leeg Nyiaj Girder Nyiaj Ua Haujlwm Crane khiav khiav hauv qab flange phaj ntawm cov zais zis thiab hluav taws xob ntawm Girder Nyiaj Ua Haujlwm Crane yog khiav ntawm ib sab ntawm lub zais, uas nce qhov chaw ua haujlwm ntawm qhov sib txuas thiab txo qhov kev sib xyaw thiab nqi.
Yog tias koj qhov kev cob qhia yog nqaim lossis tsis txaus, xaiv qhov hom crane!
Specification
Peev Xwm | T | 3 | ||||||
Tau Txais | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | |
Lifting qhov siab | m | 6, 9, 12, | ||||||
Lifting ceev | m / min | 8 lossis 8 / 0.8 | ||||||
Hoist mus ncig ua si | m / min | 20, 30 | ||||||
Crane mus ncig teb chaws ceev | m / min | 20 | 30 | |||||
Tag nrho qhov hnyav | kg | 2705 | 3519 | 4278 | 5066 | 5422 | 6877 | |
Max. Log load | KN | 20.1 | 23.38 | 24.51 | 28.05 | 29.02 | 32.93 | |
Rail tau pom zoo | Qauv | 24kg / m | ||||||
Tag nrho lub cev muaj zog | kw | 4.9 | ||||||
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 1065 | 1130 | 1180 | 1230 | 1300 | ||
Tsheb sab saum toj rau nqe lauj | H4 | -130 | -65 | -15 | 35 | 105 | ||
Crane paus nrug | W | 2500 | 3000 | 3500 | ||||
Crane dav | B | 3000 | 3500 | 4000 | ||||
Ntaus tau ua txhaum | S1 | 1413 | ||||||
Nqe lem txoj cai txwv | S2 | 1496 | ||||||
Peev Xwm | T | 5 | ||||||
Tau Txais | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | |
Lifting qhov siab | m | 6, 9, 12, | ||||||
Lifting ceev | m / min | 8 lossis 8 / 0.8 | ||||||
Hoist mus ncig ua si | m / min | 20, 30 | ||||||
Crane mus ncig teb chaws ceev | m / min | 20 | 30 | |||||
Tag nrho qhov hnyav | kg | 3175 | 4000 | 4366 | 6066 | 6514 | 7507 | |
Max. Log load | KN | 29.7 | 33.7 | 36.47 | 40.13 | 41.49 | 44.27 | |
Rail tau pom zoo | Qauv | 24kg / m | ||||||
Tag nrho lub cev muaj zog | kw | 8.3 | ||||||
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 1170 | 1255 | 1280 | 1360 | 1410 | ||
Tsheb sab saum toj rau nqe lauj | H4 | -175 | -90 | -65 | 15 | 65 | ||
Crane paus nrug | W | 2500 | 3000 | 3500 | ||||
Crane dav | B | 3000 | 3500 | 4000 | ||||
Ntaus tau ua txhaum | S1 | 1405 | ||||||
Nqe lem txoj cai txwv | S2 | 1496 | ||||||
Peev Xwm | T | 10 | ||||||
Tau Txais | m | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | |
Lifting qhov siab | m | 6, 9, 12, | ||||||
Lifting ceev | m / min | 8 lossis 8 / 0.8 | ||||||
Hoist mus ncig ua si | m / min | 20, 30 | ||||||
Crane mus ncig teb chaws ceev | m / min | 20 | 30 | |||||
Tag nrho qhov hnyav | kg | 4047 | 5378 | 6542 | 7741 | 8312 | 9804 | |
Max. Log load | KN | 49.78 | 57.88 | 62.64 | 66.83 | 68.83 | 73.2 | |
Rail tau pom zoo | Qauv | 24kg / m | ||||||
Tag nrho lub cev muaj zog | kw | 13.8 | ||||||
Lub ntsiab qhov ntev (hli) | Kev ncua (m) | 7.5 | 11.5 | 14.5 | 17.5 | 19.5 | 22.5 | |
Tsheb saum toj kawg nkaus rau cov crane saum | H | 1075 | 1195 | 1305 | 1385 | 1475 | ||
Tsheb sab saum toj rau nqe lauj | H4 | -175 | -90 | -65 | 15 | 65 | ||
Crane paus nrug | W | 2500 | 3000 | 3500 | ||||
Crane dav | B | 3000 | 3500 | 4000 | ||||
Ntaus tau ua txhaum | S1 | 1840 | ||||||
Nqe lem txoj cai txwv | S2 | 1840 | ||||||
