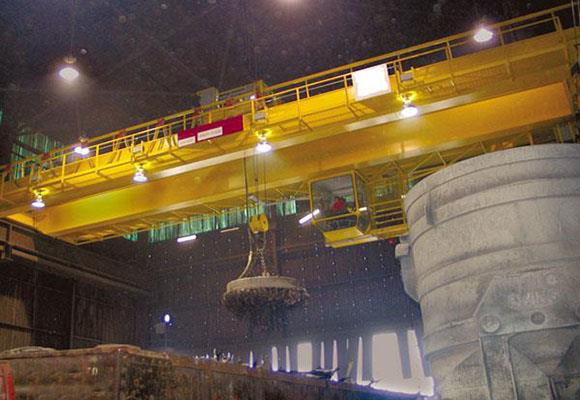

Ob chav Girder Choj Crane nrog Electromagnet

Ob Chav Girder Choj Crane nrog Electromagnet yog ib qho kev ua haujlwm tshwj xeeb rau kev tshem thiab txav steel khoom, steel phaj thiab steel kav. Qhov no crane yog tsim los ntawm girder, kev mus ncig tebchaws mechanisms, lifting trolley, fais ntu thiab ...

Xa kev nugTsham tam sim no
Txhawb tshuaj

Ob chav Girder Choj Crane nrog Electromagnet


Kev piav qhia

Ob chav Girder choj Crane nrog Electromagnet yog ib qho tshwj xeeb crane rau kev tshem thiab txav steel khoom, steel phaj thiab steel kav. Qhov no crane yog tsim los ntawm girder, kev mus ncig ua si mechanisms, kev tshem trolley, hluav taws xob thiab electromagnet spreader. Lub tshuab hluav taws xob ntawm electromagnetic suction ntawm no tus choj crane tuaj yeem siv 10 feeb tom qab fais fab tuag. Thiab cov duab ntawm electromagnet spreader tuaj yeem yog qhov tsim los ntawm tus qauv ntawm cov ntaub ntawv kom tau muab tshem tawm.

Muaj 2 hom electromagnet spreader: electromagnetic chuck thiab electromagnetic beam. Thiab cov pa luam yeeb electromagnetic kuj yog 2 hom: tsis yog tig txoj hlua (ntsug los yog lub ntsiab lus tseem ceeb) thiab tig nqaj (Cov nqaj nqes los yog nqus tsev).


Nta

1. Peb lub qhov rooj nkag mus rau lub cab: xaus, sab thiab sab saum toj rooj;

2. Ib feem ntawm txoj hlua khi yuav tsum muab xauv los ntawm kev sib tsoo thaum lub tshuab ua haujlwm electromagnetic;

3. Nws txoj kev tshem tawm muaj xws li qhov hnyav ntawm electromagnetic ib feem, thiab qhov nyhav ntawm tag nrho cov crane tsis suav nrog qhov hnyav ntawm electromagnetic chuck thiab nws cov khoom;

4. Cov qauv siv rau hauv lub voj voos yog txuas rau hauv siab zog ntawm robots;

5. Cov log, hlua khi, kev sib tsoo thiab kev sib tsoo yog tsim los ntawm CNC nrog qhov zoo tshaj plaws;

6. Hnyav plaub hau nplhaib ua haujlwm ntawm Wuxi NGP, qhov zoo tshaj plaws hauv Suav;

7. Khoom siv hluav taws xob los ntawm German Siemens

8. Kev tswj tus kheej: kev tswj lub wireless lossis tswj kav;

9. Ua kom muaj kev tiv thaiv kev kub nyhiab;

10. Cov tsis muaj Polyurethane;

11. Kev hloov Crane mus tsis pub dhau;

12. Kev tiv thaiv kev tuaj yeem tiv thaiv;

13. Cov khoom siv kaw thaum muaj xwm ceev;

14. Tam sim no tus tiv thaiv kev tiv thaiv;


Specifications


Lifting Capacity

t

5t

10t

16t

Ua haujlwm ua haujlwm

Tshaj

A6

Tau Txais

m

10.5 ± 31.5

10.5 ± 31.5

10.5 ± 31.5

Max. Lifting Qhov siab

m

16

16

16

Ceev

Lifting

m / min

15.6

13

13

Taug kev ntawm Trolley

39.5

43.8

44.5

Taug kev Crane

92.7 / 93.7

92.7 / 93.7 / 86.4

76/89

cav

Lifting

Qauv

YZR180L-6

YZR225M1-6

YZR250M1-6

KW

15

30

37

Taug kev ntawm Trolley

Qauv

YZR112M-6

YZR132M1-6

YZR132M2-6

KW

1.5

2.2

3.7

Taug kev Crane

Qauv

YZR160M1-6

YZR160M2-6

YZR160M1-6

YZR160M2-6

YZR160M2-6

YZR160L-6

KW

2 × 5.5 KW

2 × 7.5 KW

2 × 5.5 KW

2 × 7.5 KW

2 × 7.5 KW

2 × 11 KW

Electromagnetic disk

Qauv

Tshaj

MW1-6

MW1-16

MW1-16

MW1-16

Txaus nyiam hnyav

kg

4540

3330

8330

14330

Tuag hnyav

460

1670

1670

1670

Ncauj

hli

776

1180

1180

1180

Hlau taug qab pom zoo

43Kg / m

Fais fab mov

Peb-theem AC 380V, 50Hz
