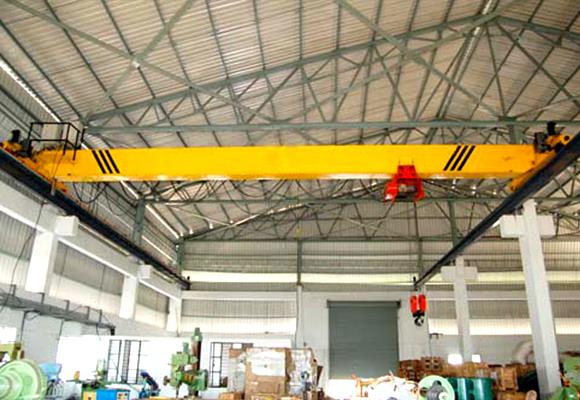

LDA 5 Tuj Tib Girder Nyiaj Siv Ua Haujlwm Crane Rau Muag
ib qho-girder nyiaj siv ua haujlwm mus tsham cov kev ua si tshwj xeeb tshaj plaws rau lub caij nyhav dua. Qhov no ua rau lub vauj ntawm cov nqhis dej mus rau qhov tsawg kawg nkaus - thiab tsim kom tsim tau cov nqi tsim nyog rau lub tsev. Qhov kev qhia no yuav qhia koj txog txoj kev siv nyiaj tsawg. Lawv kuj muaj xws li cov chav tsev uas muaj kev sib tw nrog kev sib tw siab thiab cov txiaj ntsig ntawm kev siv ntsuas (crane geometry), ua rau muaj kev tshwj xeeb mus txawv tebchaws. Rau kev khiav hauj lwm ntau dua.
LDA 5 tuj nkaus xwb girder overhead crane rau kev muag khoom
Luv luv piav qhia
1. Lub crane tuaj yeem pib tsis xwm yeem thiab muaj kev ruaj ntseg thiab nti tawm tau zoo.
2. Nws yog cov cuab yeej los ntawm ntau dua kev tsim kho thiab muaj zog dua toughness hlau raws li tag nrho.
3. Cov cuab kev pom tseeb yog ib lub qauv kev loj hlob thiab yooj yim rau kev tswj hwm.
4. Siv dav dav hauv cov nroj tsuag txiab, cov khoom muag khoom nqa khoom.
5. Peb lub hom lag luam: hauv av kov, thaiv kev tswj cov chaw taws teeb thiab cab.

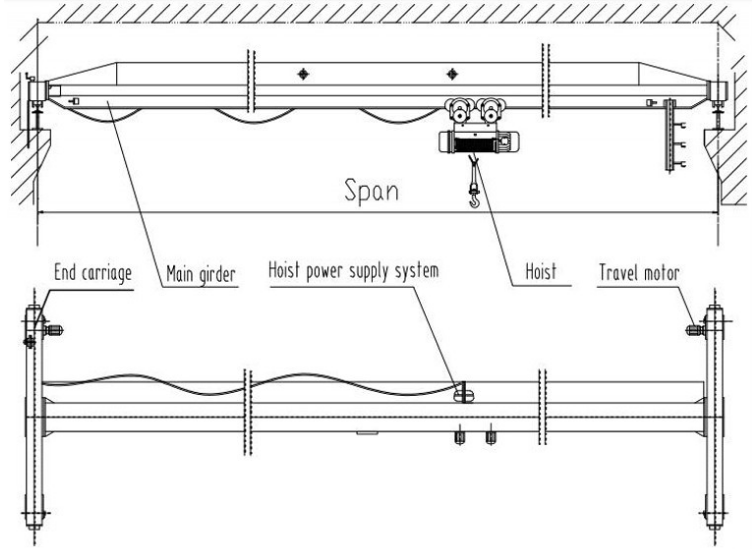

LDA Type1-5T Them Nqi Phaj Hoist Crane yog kho thiab tsim los ntawm LD hom ib nqaj crasm saum crane.
Lub tshuab thawb kev lag luam yog qhov hoist uas khiav ntawm lub I-hlau nyob rau hauv lub hauv paus loj. Cov cuab kev pom tseeb yog ib qho kev ua qauv zoo thiab yooj yim rau kev tswj hwm. Nws yog siv CD / MD qauv fais fab raws li kev tshem tshuab.
Nws yog txwv tsis pub siv cov cuab yeej siv rau qhov chaw ua taus pa, tawg lossis muaj kev kub ntxhov. Nws muaj peb hom lag luam: av kov, wireless chaw taws teeb tswj thiab cab. Lub cab muaj ob hom qauv: qhib cab thiab kaw cab. Cov cab kuj yuav muab nruab rau sab laug los yog sab xis raws li qhov teeb meem.
Tus ncua sij hawm ntawm nws yog 7.5 ~ 22.5m (raug rau cov qauv tsis tsim raws li tus neeg siv yuav tsum tau) .Txhua hoob kawm yog A3, thiab qhov kub ua haujlwm yog nruab nrab ntawm -25 ° Caub 40 ° C.
Lub crane ntawm peb lub tuam txhab yog tiag A1 thiab tus nqi ntawm peb cov crane yog tsim nyog.
Lifting nyhav (t) | 1 | 2 | 3 | 5 | |||
Kev ncua (m) | 7.5-22.5 | ||||||
Lifting Mechanism (fais fab fais fab) & fais fab ho mus ncig ua si | Qauv ntawm fais fab fais fab | MD | CD | ||||
Lifting ceev (m / min) | 8 / 0.8 (7 / 0.7) | 8 (7) | |||||
Lifting qhov siab (m) | 6,9,12,18,24,30 | ||||||
Mus ncig teb chaws ceev (m / min) | 20 | ||||||
Lub cev muaj zog | Cone tus cwj mem kua-cage qauv | ||||||
Ua haujlwm hauv chav kawm | A3 | ||||||
Hluav taws xob tam sim no | 380v 50Hz peb theem | ||||||
Lub cev muaj zog | Φ270 | ||||||
Dav ntawm txoj kev | 37-70 hli | ||||||
LDA Type1-5T Them Nqi Mobile Hoist Crane Zoo:
1. Muaj cov chav kawm zoo tshaj plaws nrog kev sib tw
2.Compact design, optimal siv ntawm qhov loj ntawm cov chaw ua haujlwm
3.Cov tsev tsim, kev ua tau zoo
4. Saib xyuas cov khoom kom yooj yim thiab muab qhov khoom thauj raws nraim
5.Xaiv lub tsheb pib thiab nres
6. Kev nyab xeeb ntawm kev nyab xeeb thiab kev cia siab
7.Xaj suab nrov, khoom noj khoom haus thiab kev pom zoo
8.Zaub tshaj plaws & Yooj Yim, kho zoo heev rau cov khoom thiab cov khoom
9.Cov khoom siv hluav taws xob
10. "One-Stop Shop" rau koj cov crane thiab hoist xav tau
Kev tiv thaiv kev kub ntxhov: Yog tias cov khoom nyob ntawm lub peev xwm, lub crane yuav muab lus ceeb toom zoo rau kev tiv thaiv nws tus kheej.
Kev Tiv Thaiv Thaum Muaj Xwm Ceev: Yog tias cov neeg khiav dej num ntsib nrog qee qhov xwm ceev, peb tuaj yeem pib lub thiv nres
system kom tiv thaiv cov khoom muaj nqis.
Kev Tswj Thaiv: Chav tswj lossis chaw taws teeb tswj kom tsis txhob muaj kev raug mob rau cov neeg khiav dej num
Kev tshem lub cav loj: nrog thermal thaiv thiab thaiv kev tiv thaiv.
Hooks nrog latch
Roj Hmab Ntoo
Cov khoom tiv thaiv
Crane mus thiab hloov kawg kev nkag mus
Cov kev sibtham hauv kev sibtham yog raug kuaj ua ntej sib dhos.
Tag nrho cov cranes yuav tsum preassembled thiab kuaj ua ntej yuav tawm hauv lub hoobkas thiab muab cov ntawv pov thawj ntawm kev xeem.
