Muaj peev xwm mus txog 16 Tuj Tib Nyiaj Girder Nyiaj Siv Ua Haujlwm Crane
- May 03, 2018 -

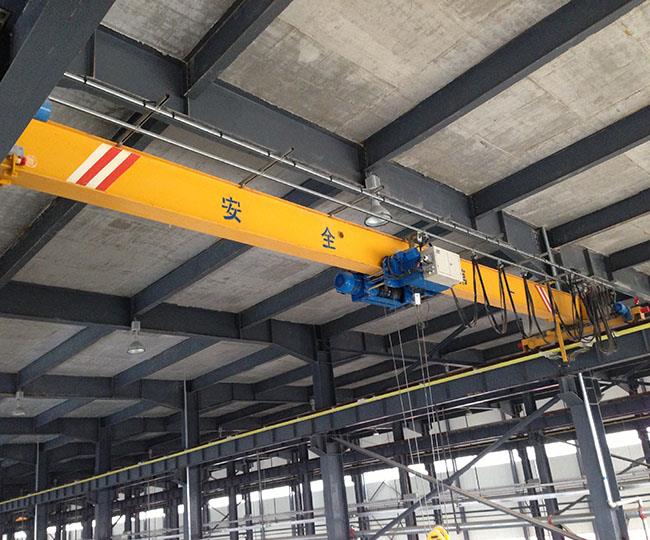

Basic Info timg.jpg


Lub Npe: Muaj Peev Xwm Txog 16 Tuj Tib Nyiaj Girder Nyiaj Siv Ua Haujlwm Crane

Qauv TSIS MUAJ: LD

Lifting Qhov siab: mus txog 20m

Pawg Ua Hauj Lwm: A3-A5

Kev Thaiv Tswj: Pendent / Wireless

Daim Ntawv Thov: Siv Kev Siv, Rhiav Kev Siv, Tsuas Siv Tsiaj

Kev Tua Tsiaj: Cov Hluav Taws Xob

Hwj chim Source: Fais

Tsiv Yam: Log

Kev Nruab Nrab: Sib koom ua ke

Ntauwd Crane Hom: Nyiaj siv ua haujlwm Crane

Thauj Pob: Ntoo Lub Thawv

Kev Kho Mob: Muaj Peev Xwm: 2-10T, Kev Tshawb Xyuas: 5-30M

Keeb kwm: Henan, Suav teb


Cov Lus Qhia Txog


Tshooj 1: Nqe lus piav qhia

LD hom ib qho nyiaj hauv kauj vab ntawm cov kauj vab feem ntau zuj zus ib txoj kev siv nyiaj hauv koog. Cov no tuaj yeem ua nrog hlau kab lossis ntau txoj hlua khi lub vev xaib. Tib Kab Girder Cranes muaj ntau dua thaum tshem peev xwm tsawg dua 20T. LD Ib qho Girder Overhead cranes yog dav siv nyob rau hauv peb cov teb. Nws muaj ntaub ntawv thov ntawm steel cog, Hydropower cog, Warehouse, Rhiav, ntau cov kab, Txuas Txij Nkawm, Khoom Siv Khoom, Khoom Ua Khoom Kav thiab lwm yam Muaj peb cov khoom siv dav dav thiab ntau yam khoom siv kom haum txhua tus neeg.


Tshooj 2: Kev Ntsuam Xyuas Kom Paub Ntxiv:

1- Tshuab Mechanism Lifting
- Monorail hlau hlua los yog saw hoist qhov kev xaiv: kev hloov ceev: ib qho los yog ob qho raws li yuav tsum tau muaj
- Trolley Speed: Ib Leeg lossis Dual los yog Kauj Ruam tsawg dua li ib qho xav tau
- Cov kev ua tau zoo tshaj plaws nrog cov nqi pheej yig

2-Thaj Chaw Los
-nqhov welded lub thawv hom kawg kev sib tsoo
- Cov qauv tsim
-qhov txhuam cage lub cev los yog muag pib lub cev ua kev xaiv
- Tsav tsheb khiav ceev: Ib qho los yog Dual los yog Kauj Ruam tsawg dua raws li tau teev tseg

3-Ntej Girder
- Rigid welded lub thawv Girder los yog khov khiab steel khov
- Cov qauv tsim
- Ua los ntawm steel Q235 los yog Q345
- Tsim Kev Deflection≤1 / 750 ntawm kev ncua

4-Tswj
-tseem kev tswj hwm kev tswj hwm nrog C-khiav
-ib wireless tswj raws li kev xaiv
-Cov khoom tiv thaiv raws li kev xaiv

5-Fais Ntu
-Cais fais fab mov (raws li kev xaiv)
-Lub tswj cov iav IP54 los yog IP44 nyob ntawm kev ua hauj lwm hauv ambient.
-Cov khoom yog qhov chaw nyob hauv tus txij nkawm kev phooj ywg, thiab tag nrho qhov teeb meem muab kev tiv thaiv zoo
-Festoon cables raug tshem tawm ntawm cable saddles, tsau rau cov kab sib txuas ntawm lub tsheb, khiav hauv cov khoom C-galvanized.
-Ntaum fais fab hauv ib hom ntawm Schneider lossis Siemens

6-Painting
-corrosion tiv thaiv kab xev tshem tawm ntawm cov neeg tua hluav taws blasting SA 2.5
-Thawj txheej txheej ntawm epoxy 30 microns
-Sev txheej txheej ntawm txheej epoxy 30 microns
-Thawj txheej ntawm txheej ntawm polyurethane 40 microns
-Kev ib qho thickness: li 100 microns
-Cov suab: daj lossis txiv kab ntxwv raws li kev xav tau

7-Tiv Thaiv Kev Tiv Thaiv
-Cov xwm ceev-tawm hloov
-kev tiv thaiv
-cov kev tiv thaiv
-kev tawm mus ncig thiab kev tiv thaiv mus ntev ntev
-tsiv thaiv kev tiv thaiv ncig teb chaws
-Kev thaiv kev tiv thaiv ntawm lub cev

Ntu 3: Sketch & Cov Ntaub Ntawv Kev


Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
1 7.5 1.67 8.9 3.9 490 910 550 2000 2500 796 1274
8 1.72 9.1 4.0
8.5 1.77 9.2 4.1
9 1.81 9.4 4.3
9.5 1.86 9.5 4.4
10 1.91 9.7 4.5
10.5 1.96 9.8 4.6
11 1.95 9.8 4.6
11.5 2.00 10.0 4.7
12 2.05 10.1 4.8
12.5 2.09 10.2 4.9
13 2.14 10.4 5.0
13.5 2.19 10.5 5.2
14 2.24 10.6 5.3
14.5 2.43 11.1 5.8 955 595 2500 3000
15 2.48 11.3 5.9
15.5 2.53 11.4 6.0
16 2.58 11.5 6.1
16.5 2.63 11.7 6.3
17 2.66 11.7 6.3
17.5 2.85 12.2 6.8 530 970 650
18 2.90 12.4 6.9
18.5 2.96 12.5 7.1
19 3.01 12.7 7.2
19.5 3.02 12.7 7.2
20 3.20 13.1 7.7 580 700 3000 3500
20.5 3.26 13.3 7.8
21 3.32 13.4 8.0
21.5 3.37 13.6 8.1
22 3.43 13.7 8.2
22.5 3.49 13.9 8.4
23 4.07 15.3 9.8 660 990 800 3500 4000
23.5 4.13 15.5 10.0
24 4.20 15.7 10.2
24.5 4.26 15.8 10.3
25 4.32 16.0 10.5
25.5 4.39 16.2 10.6
26 5.35 18.6 13.0 745 1010 900 4000 4500
26.5 5.43 18.8 13.2
27 5.52 19.0 13.5
27.5 5.60 19.2 13.7
28 5.68 19.4 13.9
28.5 5.76 19.6 14.1
Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
2 7.5 1.79 13.8 4.1 490 1080 550 2000 2500 871 1274
8 1.84 14.0 4.2
8.5 1.88 14.1 4.3
9 1.93 14.3 4.4
9.5 1.98 14.5 4.5
10 2.03 14.7 4.6
10.5 2.07 14.8 4.7
11 2.12 15.0 4.8
11.5 2.25 15.4 5.1 1125 595
12 2.30 15.5 5.3
12.5 2.35 15.7 5.4
13 2.40 15.8 5.5
13.5 2.45 16.0 5.6
14 2.50 16.1 5.8
14.5 Txwv 16.5 6.1 580 1140 700 2500 3000
15 2.68 16.6 6.2
15.5 2.74 16.8 6.3
16 2.79 17.0 6.5
16.5 2.85 17.1 6.6
17 2.91 17.3 6.8
17.5 3.23 18.1 7.6 660 1160 800
18 3.30 18.3 7.7
18.5 3.36 18.5 7.9
19 3.42 18.6 8.0
19.5 3.49 18.8 8.2
20 4.09 20.3 9.7 785 1135 900 3000 3500
20.5 4.17 20.5 9.9
21 4.24 20.7 10.1
21.5 4.32 20.9 10.3
22 4.40 21.1 10.5
22.5 4.47 21.3 10.7
23 5.31 23.4 12.7 820 1200 1000 xyoo 3500 4000
23.5 5.40 23.7 13.0
24 5.49 23.9 13.2
24.5 5.57 24.1 13.4
25 5.66 24.3 13.6
25.5 5.75 24.6 13.8
26 6.40 26.2 15.5 875 1250 1100 4000 4500
26.5 6.50 26.5 15.7
27 6.60 26.7 16.0
27.5 6.69 27.0 16.2
28 6.79 27.2 16.4
28.5 6.89 27.5 16.7
Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
3 7.5 1.93 18.9 4.2 530 1255 650 2000 2500 818.5 1291
8 1.98 19.1 4.3
8.5 2.03 19.4 4.4
9 2.09 19.6 4.5
9.5 2.14 19.8 4.7
10 2.20 20.0 4.8
10.5 2.25 20.2 4.9
11 2.31 20.4 5.0
11.5 2.41 20.7 5.3 580 700
12 2.47 20.9 5.4
12.5 2.53 21.1 5.6
13 2.59 21.3 5.7
13.5 2.64 21.5 5.9
14 2.70 21.7 6.0
14.5 3.02 22.5 6.8 660 1275 800 2500 3000
15 3.08 22.7 6.9
15.5 3.14 22.9 7.1
16 3.21 23.1 7.2
16.5 3.27 23.2 7.4
17 3.34 23.4 7.6
17.5 3.84 24.7 8.8 745 1290 900
18 3.91 24.9 9.0
18.5 3.99 25.1 9.2
19 4.06 25.3 9.4
19.5 4.14 25.5 9.6
20 4.92 27.5 11.5 820 1315 1100 3000 3500
20.5 5.01 27.7 11.7
21 5.09 28.0 11.9
21.5 5.18 28.2 12.2
22 5.27 28.4 12.4
22.5 5.36 28.7 12.6
23 5.71 29.6 13.5 875 1360 3500 4000
23.5 5.80 29.8 13.7
24 5.89 30.0 13.9
24.5 5.99 30.3 14.2
25 6.08 30.5 14.4
25.5 6.17 30.8 14.6
26 7.97 35.3 19.1 925 1660 1200 4000 4500
26.5 8.09 35.6 19.4
27 8.22 35.9 19.7
27.5 8.34 36.2 20.0
28 8.46 36.6 20.3
28.5 8.59 36.9 20.7
Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
5 7.5 2.20 28.7 4.6 580 1460 720 2000 2500 841.5 1310
8 2.27 29.0 4.7
8.5 2.33 29.3 4.9
9 2.40 29.7 5.0
9.5 2.46 30.0 5.2
10 2.53 30.2 5.3
10.5 2.59 30.5 5.5
11 2.66 30.8 5.6
11.5 2.91 31.5 6.3 660 800
12 2.98 31.8 6.4
12.5 3.05 32.0 6.6
13 3.12 32.3 6.8
13.5 3.20 32.5 6.9
14 3.27 32.8 7.1
14.5 3.52 33.5 7.7 745 1540 900 2500 3000
15 3.60 33.7 7.9
15.5 3.68 33.9 8.1
16 3.75 34.2 8.3
16.5 3.83 34.4 8.5
17 3.90 34.6 8.7
17.5 4.41 35.9 9.9 820 1500 1000 xyoo
18 4.50 36.2 10.2
18.5 4.59 36.5 10.4
19 4.68 36.7 10.6
19.5 4.76 37.0 10.8
20 5.23 38.2 12.0 875 1545 1100 3000 3500
20.5 5.33 38.4 12.2
21 5.42 38.7 12.4
21.5 5.51 38.9 12.7
22 5.60 39.2 12.9
22.5 5.70 39.5 13.1
23 7.08 42.9 16.6 925 1595 1200 3500 4000
23.5 7.20 43.2 16.9
24 7.32 43.6 17.2
24.5 7.43 43.9 17.4
25 7.55 44.2 17.7
25.5 7.67 44.5 18.0
26 9.01 47.9 21.4 1015 1670 1300 4000 4500
26.5 9.16 48.3 21.7
27 9.30 48.6 22.1
27.5 9.44 49.0 22.5
28 9.58 49.4 22.8
28.5 9.72 49.7 23.2
Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
10 7.5 3.26 51.3 6.1 720 Xyoo 1850 900 2000 2500 1293 1893
8 3.34 52.1 6.3
8.5 3.43 52.9 6.5
9 3.51 53.5 6.6
9.5 3.59 54.2 6.8
10 3.67 54.8 7.0
10.5 3.76 55.3 7.2
11 3.84 55.8 7.3
11.5 4.05 56.6 7.9 820 Xyoo 1850 1000 xyoo
12 4.14 57.1 8.1
12.5 4.22 57.6 8.3
13 4.31 58.0 8.5
13.5 4.40 58.4 8.7
14 4.49 58.8 8.9
14.5 4.80 59.8 9.6 875 1900 1100 2500 3000
15 4.89 60.2 9.8
15.5 4.98 60.6 10.1
16 5.07 60.9 10.3
16.5 5.17 61.3 10.5
17 5.26 61.7 10.7
17.5 5.53 62.5 11.4 Xyoo 1940 1140
18 5.63 62.8 11.6
18.5 5.73 63.2 11.9
19 5.83 63.5 12.1
19.5 5.92 63.9 12.3
20 6.89 66.4 14.8 925 2000 1250 3000 3500
20.5 7.01 66.8 15.0
21 7.12 67.1 15.3
21.5 7.24 67.5 15.6
22 7.36 67.9 15.9
22.5 7.48 68.2 16.2
23 8.96 72 19.9 1100 1920 1350 3500 4000
23.5 9.11 72.5 20.3
24 9.26 72.9 20.6
24.5 9.41 73.3 21.0
25 9.56 73.8 21.4
25.5 9.71 74.2 21.7
26 13.09 82.7 30.2 1200 1450 4000 4700
26.5 13.29 83.3 30.7
27 13.48 83.8 31.2
27.5 13.67 84.3 31.6
28 13.86 84.8 32.1
28.5 14.05 85.4 32.6
Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
16 7.5 3.64 77.2 7.0 820 2480 1000 xyoo 2000 2500 1293 1893
8 3.74 78.3 7.2
8.5 3.84 79.4 7.4
9 3.94 80.4 7.6
9.5 4.04 81.3 7.9
10 4.14 82.1 8.1
10.5 4.24 82.9 8.3
11 4.34 83.6 8.5
11.5 4.55 84.6 9.0 875 2525 1100
12 4.66 85.2 9.3
12.5 4.76 85.9 9.5
13 4.87 86.5 9.8
13.5 4.97 87.1 10.0
14 5.08 87.6 10.3
14.5 5.93 90.0 12.4 975 1200 2500 3000
15 6.06 90.6 12.7
15.5 6.18 91.1 13.0
16 6.31 91.7 13.3
16.5 6.43 92.2 13.6
17 6.56 92.7 13.9
17.5 7.19 94.5 15.5 1075 1300
18 7.33 95.0 15.8
18.5 7.47 95.5 16.1
19 7.61 96.0 16.5
19.5 7.75 96.5 16.8
20 8.56 98.7 18.9 1130 2570 1400 3000 3500
20.5 8.72 99.2 19.2
21 8.87 99.7 19.6
21.5 9.03 100.2 20.0
22 9.18 100.8 20.4
22.5 9.34 101.3 20.8
23 12.41 109.0 28.4 1280 1550 3500 4000
23.5 12.61 109.6 28.9
24 12.81 110.2 29.4
24.5 13.02 110.9 30.0
25 13.22 111.5 30.5
25.5 13.43 112.0 31.0
26 14.34 114.4 33.2 1300 2600 1600 4000 4700
26.5 14.55 115.0 33.8
27 14.77 115.6 34.3
27.5 14.98 116.3 34.8
28 15.20 116.9 35.4
28.5 15.42 117.5 35.9
Peev (t) ncua (m) tag nrho qhov hnyav (G) max log load (kN) hauv log load (kN) H1 H2 H3 W B C1 C2
20 7.5 5.45 97.9 10.2 900 2450 1050 2000 2700 1394 1933
8 5.58 99.5 10.5
8.5 5.70 101.0 10.7
9 5.83 102.3 11.0
9.5 5.96 103.5 11.3
10 6.09 104.6 11.6
10.5 6.22 105.7 11.8
11 6.35 106.6 12.1
11.5 6.99 108.8 13.7 970 2480 1150
12 7.15 109.8 14.0
12.5 7.30 110.7 14.4
13 7.45 111.5 14.7
13.5 7.60 112.3 15.1
14 7.76 113.1 15.5
14.5 8.67 115.8 17.7 1050 2530 1280 2500 3200
15 8.85 116.6 18.1
15.5 9.02 117.3 18.6
16 9.20 118.1 19.0
16.5 9.37 118.8 19.4
17 9.55 119.5 19.8
17.5 10.50 122.2 22.2 1130 2560 1390
18 10.70 122.9 22.7
18.5 10.89 123.6 23.1
19 11.09 124.3 23.6
19.5 11.28 125.0 24.1
20 12.02 127.0 25.9 1200 2600 1500 3000 3700
20.5 12.23 127.7 26.4
21 12.44 128.4 26.9
21.5 12.64 129.1 27.4
22 12.85 129.8 27.9
22.5 12.96 130.5 28.5
23 13.88 132.7 30.5 1300 1600 3500 4200
23.5 14.10 133.4 31.0
24 14.31 134.0 31.6
24.5 14.52 134.78 32.1
25 14.74 135.4 32.6
25.5 14.96 135.6 33.1
