Portal Crane Harbour Hnyav Lift Rail Hom Crane 20t Marine
- Nov 03, 2016 -

Basic Info

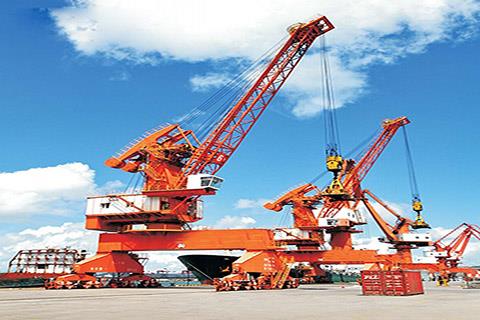

Portal Crane Harbour Heavy Lift Rail Type Crane 20t Marine.jpg


Lub Npe: Portal Crane Hnyav Laum Hnyav Rail Crane

Warranty: Ob Xyoos

Ciaj uas muag tawm: Ntiaj teb

Lifting Capacity: 40 kauj ruam

Ua haujlwm Radius: 20-73 m

Lifting Speed: 0.2-10m / Min

Slewing Ceev: 0.3m / Min

Mus ncig teb chaws ceev: 30m / Min

Lub Hwj Chim Muaj: 3-Theem 380V 50Hz

Daim Ntawv Thov: Siv Kev Siv, Tsuas Siv Tsiaj

Thauj Pob: Ntoo Case, Yas Zaj Duab Xis

Kev Qhia: CE, CCC

Keeb kwm: Xinxiang, Henan


Saib rau ntawm Crane Portal


Portal crane muaj ntau yam kev siv, xws li chaw thau khoom thiab tshem tawm ntawm chaw nres nkoj, materual handing nyob rau hauv dockyard, nkoj tsev thiab kev kho vaj tsev, lub qhov muag hlau. Plaub txuas hom portal crane jib crane, thawv xaij, lauj), khoom siv hluav taws xob thiab lwm yam khoom siv pab kev nyab xeeb. Daim ntawv thov khib nyiab thiab thaij sib xyaw yog tsim los ntawm cov ncej, tshem txoj haujlwm, luffing mechanism, slewing mechanism, travelling mechanism, spreader ntaus ntawv (grw qib luffing mechanism ua kom ib txwm ua hauj lwm hauv lub xeev.

Portal crane tsim thiab tsim qauv: Kev qhia rau chaw nres nkoj portal crane (GB / T17495-1998), Cov cai tswj kev nyab xeeb rau kev nqa cov khoom siv (GB / T14406-1993); ISO cov qauv, FEMstandards thiab JIS cov qauv.

Feature ntawm Crane Portal


(1). Quickened lub turnover thiab kev khiav hauj lwm ntawm loading thiab unloading.
(2). Kev ua hauj lwm ua haujlwm siab, cov qauv kev cog lus.
(3). Ua siab ntev, khiav lag luam, kev nyab xeeb thiab txhim khu kev ntseeg.
(4). Yooj yim tu, zoo saib thiab zoo li ntawd.
(5). Crane tsav: IP54 lossis IP44, qib F F.
(6). Tshwj xeeb tshaj yog rau cov chaw nres nkoj lifting.


Technical Parameter ntawm Portal Crane


Khoom Specification 4073
Ua hauj lwm qib
ntawm Tiav Machine 		A4
Lifting Capacity Lifting Capacity t 40 27 22 16 10
Radius m 20 ~ 45 20 ~ 55 20 ~ 60 20 ~ 67 20 ~ 73
Lifting Qhov siab m 45
Ua haujlwm Radius Max. m 73
Min. m 20
Kev ceev ntawm Mechanism Lifting Speed m / min 0.2 ~ 10
Luffing Ceev m / min 0.2 ~ 10
Slewing Ceev r / min 0.3
Mus ncig teb chaws ceev m / min 30
Hwj chim Source 3-theem AC 50Hz 380V
Khiav Gauge / Log Puag m 10.5 / 14
Ncig Height ntawm Portal m 8.06
Tig Teb Tais Tsiaj Tais Radius m ~ 9.4
Hauv qhov kev pab cuam Maximun Cua Siab N / m 250
Kev Pab Maximun Cua Siab N / m 1000 xyoo
Hauv qhov kev pab cuam Maximun Log Siab KN 400
Hlau Teev Pom Kev Pom P50
Muaj Peev Xwm Muaj kw 350


Peb qhov kev pab cuam ntawm Crane Portal


Cov kev pab cuam ua ntej: Peb tuaj yeem muab koj nrog cov qauv tsim, cov txheej txheem tsim, tsim kev pab cuam rau koj cov khoom siv los tau. Ntxiv ua thiab tsim khoom raws li koj qhov kev xav tau, qhia koj cov neeg ua haujlwm.

Kev Muag Khoom: Peb yuav nrog koj mus ua kom tiav cov cuab yeej tshuaj, kev tsim kho thiab pabcuam hauv kev txhim kho.

Tom qab Kev Pab Muag Khoom: Peb xa cov kws kho mob mus rau qhov chaw coj los txhim kho cov khoom siv, kev ua haujlwm thiab kev cob qhia koj cov neeg khiav dej num.
