Hydraulic Foldable Knuckle Boom Chaw nres nkoj Crane

- Apr 20, 2018 -

Cov Lus Qhia Txog

Jib (Knuckle) Boom marine crane muab lub zog, ncav cuag, thiab dexterity rau cov kev thov cov kev lag luam uas tseem ceeb tshaj plaws. Lub JIB series ntawm cranes muab ntau hom khoom siv rau daim ntawv thov nyob rau hauv Khoom Kim Heev, Oceanographic, Ua Hauj Lwm nkoj, Oilfield, Cov Khes Nyab Qhov Tiv Thaiv los yog Tub Rog Industrial. Cov kab no kuj tuaj yeem tsim kho kom haum rau cov kev xav tau ntawm cov chaw ua haujlwm tshaj plaws. Hais txog ib qho ntawm peb cov neeg ua haujlwm muag khoom muag rau ib qho kev kho kom haum siab rau koj cov kev xav tau.

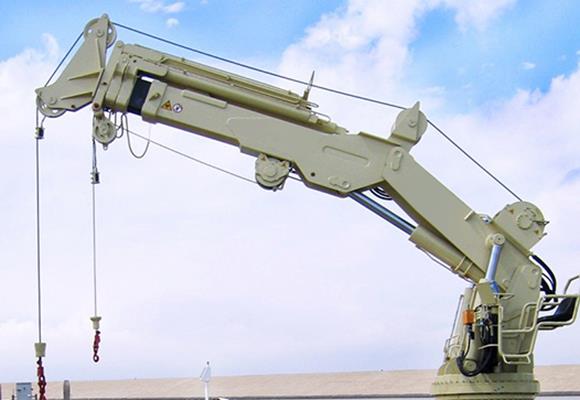

Teeb duab ntawm hydraulic foldable knuckle boom chaw nres nkoj nkoj crane

hydraulic foldable knuckle boom chaw nres nkoj nkoj crane

QAUV QAUV	Tshaj Tawm (m)	Kev Nyab Xeeb Kev Ntseeg (kN)	Lifting Moment (KNm)	Toov Moment (r / min)	Pedestal Taub ( hli )	Tuag hnyav (t)
HCK150	8.0-12.0	2.1-1.1	132-168	241	885	2.8-3.2
HCK 250	10.0-14.0	2.9-1.8	242-290	381	885	3.7-4.3
HCK 350	12.0-16.0	3.6-2.3	370-430	603	1095	5.3-6.3
HCK 550	14.0-18.0	4.7-3.2	573-660	980	1325	7.8-9.2
HCK 750	14.0-18.0	6.1-4.2	749-855	1375	1490	11.5-12.8
HCK 1150	16.0-20.0	7.3-5.2	1040-1160	Xyoo 1765	1490	12.7-14.0
HCK 1450	16.0-20.0	9.0-6.4	1268-1440	2555	1770	19.2-23.0
HCK 220	27.5	30,0	2200	4000	1800	25.0
HCK 300	30.0	30.0	3000	5000	Xyoo 2065	27.5
HCK 400	32.0	30.0	4000	6300	2050	30.0
HCK 500	35.0	35.0	5000	8000	2240	35.0
HCK 800	37.0	50.0	8000	11500	2271	55.0
HCK 1000 *	40.0	60.0	10000	14400	2536	70.0
HCK 1200	43.0	80.0	12000	18000	2550	100.0
HCK 1600	45.0	100.0	16000	34000	3166	150.0
HCK 2000	50.0	125.0	20000	44000	3987	200.0
HCK 2500	50.0	150.0	25000	50000	4000	220.0
HCK 3000	50.0	200.0	30000	60000	4500	275.0

Nthuav lus ntawm Hydraulic Knuckle Boom Jib Marine Crane

STANDARDS	XAIV
Tsis siv neeg tswj ceev	Xov tooj cua chaw taws teeb tsuj
Cov haujlwm qis / kub siab	Tus neeg teb xov tooj cua nrog lub kiv cua, lub rhaub dej kub, lub txiv neej thiab lub rooj zaum.
Roj rov qab	Standing platform
Nruam kev sib hloov	Kev tiv thaiv kev tiv thaiv
Lub zog fais fab txuas	Fais fab hydraulic zog tsev
Ntev lub neej kev kho mob: los tiv thaiv corrosion	Winch
Tus qauv yog xuab zeb blasted thiab hlau	Thauj khoom txwv
Ob npaug primer tsho thiab ob txheej xim	Qhov system txias rau cov roj hydraulic
Cov khauj khaum tshwj xeeb rau cov chaw hauv cov tubrog nkoj	Workman pob tawb

Ntim & Kev Xa Mus

Ntim Cov Lus Qhia:	Mechanical ib thooj ntim khoom los ntawm hnab yas, hluav taws xob los ntawm lub thawv ntoo lossis txheem exporting / Hluav taws xob thiab lwm yam khoom ntim tau los ntawm cov khoom siv plywood zoo, cov kab loj yog ntim yas yas yas
Kev Qhia Kom Paub:	Hauv 30 hnub tom qab tau txais koj cov nqi them ua ntej

Peb Cov Kev Pabcuam

16 lub hlis qis tom qab kev teeb tsa thiab commissioning tshwj tsis yog qhov kev puas tsuaj ntawm tib neeg.
24/7/365 hnub muab kev pab, 2 xyoo spare-parts muab rau kev tu vaj tu tsev.
Cov neeg ua haujlwm ntawm cov kws tshaj lij kev tsim qauv muab kev pabcuam, kev ua haujlwm thiab kev cob qhia haujlwm.
Npaj nrog rau cov sij hawm cov lus Askiv siv phau ntawv, cov khoom siv, khoom pov thawj thiab lwm yam ntawv pov thawj.
Oversea los yog rau ntawm Kev Tshawb Fawb Kev Txiav Txim Rau txhua lub sijhawm.

Peb Qhov Zoo Tshaj Plaws

Peb nyias txawv nyias los ntawm peb cov koom haum ua lag luam uas tso cai rau peb kom muaj txiaj ntsig zoo dua. Peb muab ib qho khoom zoo thiab muaj kev ntseeg zoo thiab peb muaj peev xwm lav tau cov sij hawm ntev txaus. Nrog ntau tshaj 35 xyoo dhau los ntawm kev lag luam thiab ua tus thawj coj ntawm thaj chaw rau kev lag luam tawm, peb muaj cov nram qab no ntawm cov neeg ua haujlwm loyal thiab muab cov kev pabcuam rau tus kheej. Peb muaj ib pab neeg loj thiab muaj kev sib koom ua haujlwm rau kev ua lag luam xws li kev muag khoom pab pawg, cov cuab yeej siv technology, cov ntaub ntawv pabcuam, shipping pab pawg uas yuav xyuas kom muaj kev pabcuam sab saum toj.

Tag nrho cov khoom tseem ceeb uas siv hom tshuaj txhim khu kev tuaj yeem
