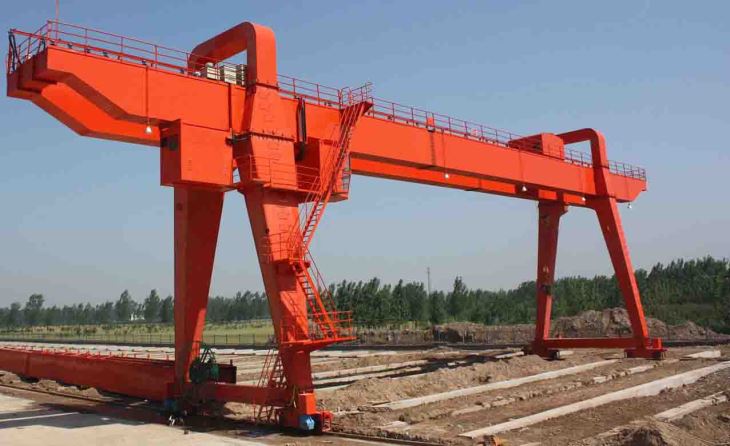

Hnyav Nqa Ob Chav Girder Gantry Crane

Hnyav Nqa Ob Chav Girder Gantry Crane

Ob chav girder gantry crane yog siv rau cov ntaub ntawv tuav kev pab cuam nyob rau sab nraum zoov cov vaj tsev los yog hla txoj kab tsheb, xws li tsaws, tshem tawm, tshem thiab hloov ua haujlwm. raws li muaj ntau qhov chaw nyob rau hauv cov ceg ntawm gantry cranem, nws yog haum rau conveying lager khoom. tsis muaj kev txhawb pab rau tus huab tais ntawm crane. thiaj li siab qhov siab ntawm crane txo qee yam nqa qhov siab.

specification:

1. Muaj peev xwm nce mus txog 900on

2.Span yog 20m rau 100m

3. Taw siab qhov siab txog li 100m

4.Kev hoob kawm: ISOA5-A7 / FEM2M-4M

5.Cov chaw ncig tebchaws kev khiav tsheb khiav hauv cov neeg tsav tsheb los yog cov chaw taws teeb tsuj

Mechanical:

1. Teeb lub npoo nrog cov ceg ntub tsiv los ntawm hauv pem teb nqaj raws li crane mus ncig teb chaws system

2. Lub khob ci ntsa iab ntawm cov nqaj tseem ceeb yuav raug tsim los ua Kev Luam Tshaj * 1-1.4 / 1000.

3.Txhob Khoom Siv: Q235 lossis Q345

4.Shot-blasting Sa2.5 rau lub ntsiab ntiv tes thiab cov nqaj hlau nqaj

5.Epoxy zinc nplua nuj xim zoo nkauj.

6.Electrification thiab tsom tawm

7.Txhua: CHINT SIEMENS Schneider

8.Cov khoom fais fab: Kab lus los sis tsheb nqaj hlau.

9. Kev hloov dua tshiab, ob chav ceev, kev ceev, thiab tag nrho hoist thiab crane movements ywj siab ib d yuav khiav ib txhij sib txawv tsim duo kom tau raws li cov kev siv crane

10.Qhov chaw tsim muaj kev tiv thaiv zoo ntawm chaw ua haujlwm tshwj xeeb. Xws li roj rhiav
